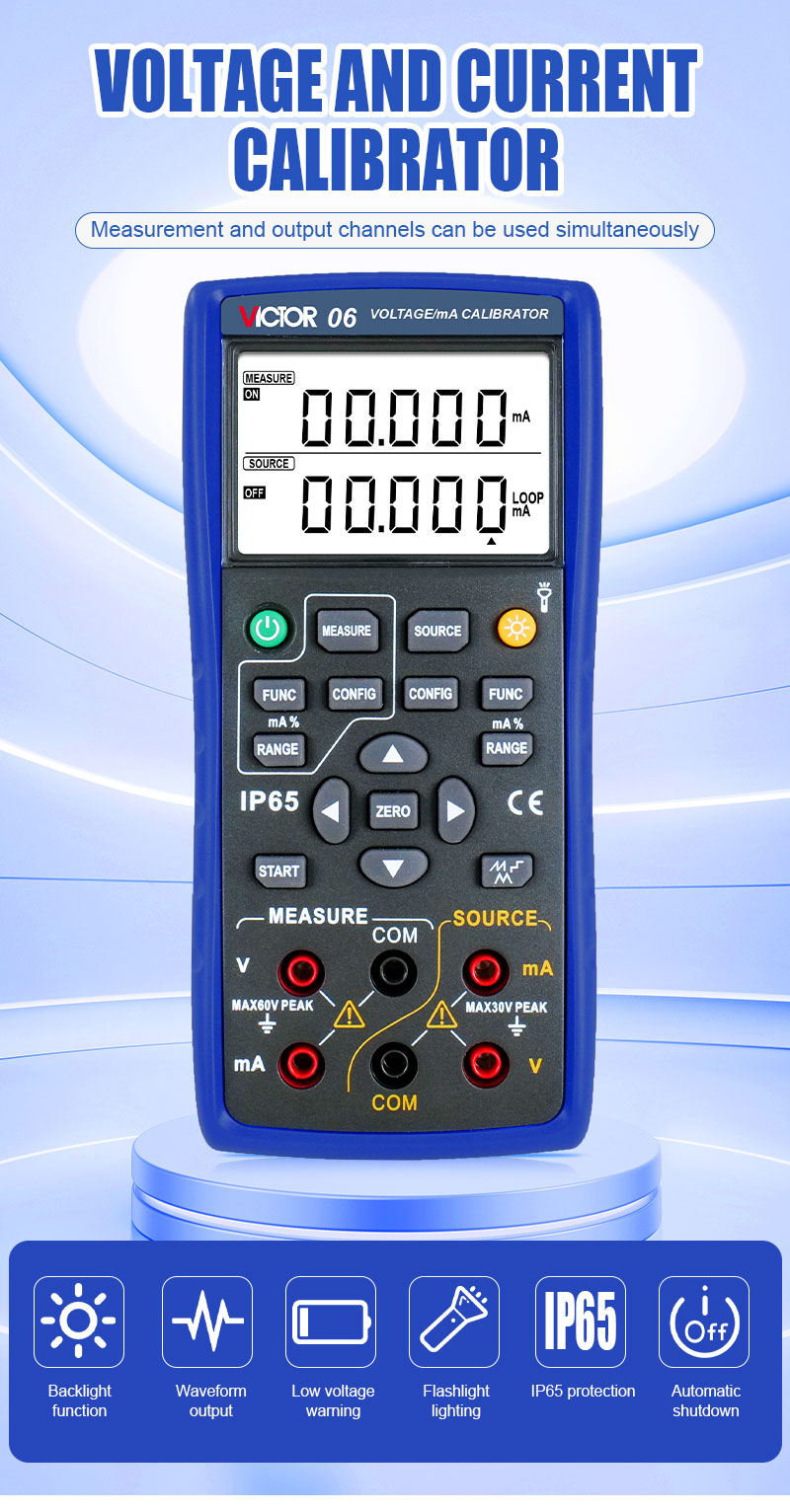

VICTOR 06 V/mA calibrator measure DCV DCA simulating output DC voltage, DC current

    Buy cheap VICTOR 06 V/mA calibrator measure DCV DCA simulating output DC voltage, DC current from wholesalers

    Buy cheap VICTOR 06 V/mA calibrator measure DCV DCA simulating output DC voltage, DC current from wholesalers
    • Buy cheap VICTOR 06 V/mA calibrator measure DCV DCA simulating output DC voltage, DC current from wholesalers
    • Buy cheap VICTOR 06 V/mA calibrator measure DCV DCA simulating output DC voltage, DC current from wholesalers
    • Buy cheap VICTOR 06 V/mA calibrator measure DCV DCA simulating output DC voltage, DC current from wholesalers
    • Buy cheap VICTOR 06 V/mA calibrator measure DCV DCA simulating output DC voltage, DC current from wholesalers
    • Buy cheap VICTOR 06 V/mA calibrator measure DCV DCA simulating output DC voltage, DC current from wholesalers

    VICTOR 06 V/mA calibrator measure DCV DCA simulating output DC voltage, DC current

    Ask Lasest Price
    Brand Name : VICTOR
    Model Number : VICTOR 06
    Certification : CE
    Price : USD238/pc
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 3000pcs available
    Delivery Time : 5 to 30 days
    • Product Details
    • Company Profile

    VICTOR 06 V/mA calibrator measure DCV DCA simulating output DC voltage, DC current

    VICTOR 06 V/mA calibrator measure DCV DCA simulating output DC voltage, DC current

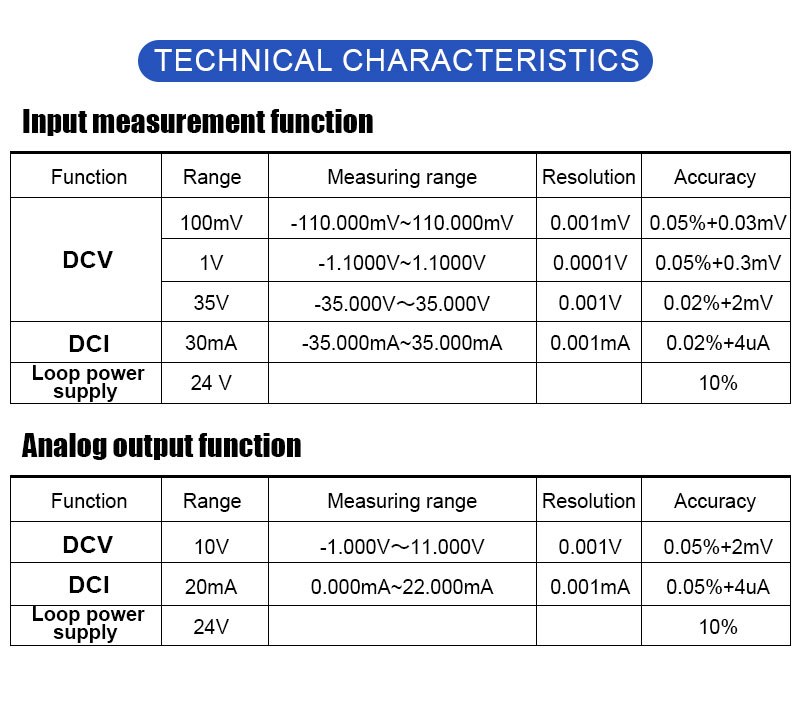

    Input measurement function

    [Applicable within one year after calibration, 23°C±5°C, 20~70%RH, Accuracy=± (%Setting Value+Digit)]

    Measurement functionRangeMeasuring rangeResolutionAccuracyRemarks

    DC Voltage

    DCV

    100mV-110.000mV~110.000mV0.001mV0.05%+0.03mVInput resistance: Approximately 1MΩ
    1V-1.1000V~1.1000V0.0001V0.05%+0.3mV
    35V-35.000V~35.000V0.001V0.02%+2mV

    DC current

    DCI

    30mA-35.000mA~35.000mA0.001mA0.02%+4uA

    Shunt resistance: Approximately 10Ω

    Input resistance: Approximately 20Ω

    Loop power supply24 V10%

    Analog output function

    [Applicable within one year after calibration, 23°C±5°C, 20~70%RH, Accuracy=±(%Setting Value+Digit)]

    Output functionRangeOutput rangeResolutionAccuracyRemarks

    DC Voltage

    DCV

    10V-1.000V~11.000V0.001V0.05%+2mVMaximum output current: 5mA

    DC current

    DCI

    20mA0.000mA~22.000mA0.001mA0.05%+4uA

    Max load of 1000Ω at 20 mA

    When used as an analog transmitter, the external loop

    power supply is 5~28V.

    Loop power supply24V±10%Maximum output current 25mA
