    6000 Counts Industrial True Rms Multimeter With Temperature Backlight

    Ask Lasest Price
    Brand Name : VICTOR
    Model Number : VICTOR 205A
    Certification : CE
    Price : 100pcs: USD8.4/pc; 100pcs to 500pcs: USD8.0/pc; 500pcs to 1000pcs: USD7.6; Above 3000pcs: USD7.2/pc
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 10000pcs available
    Delivery Time : 5 to 30 days
    • Product Details
    • Company Profile

    6000 Counts Industrial True Rms Multimeter With Temperature Backlight

    6000 Counts Industrial True Rms Multimeter With Temperature Backlight


    VICTOR 205A Auto Range Digital Multimeter 6000 Counts large LCD Display With True RMS NCV 1000V/20A AC DC With Temperature Frequency


    1.Description

    It is a handheld small and safe digital multimeter with 3 5/6 digits full function and high performance for measuring DCV, ACV, DCA, ACA, resistance, capacitance, frequency, temperature, diode, continuity test, thus it is a portable and ideal tool for users. Please read the safety information and warning in this manual carefully, and strictly abide by it.

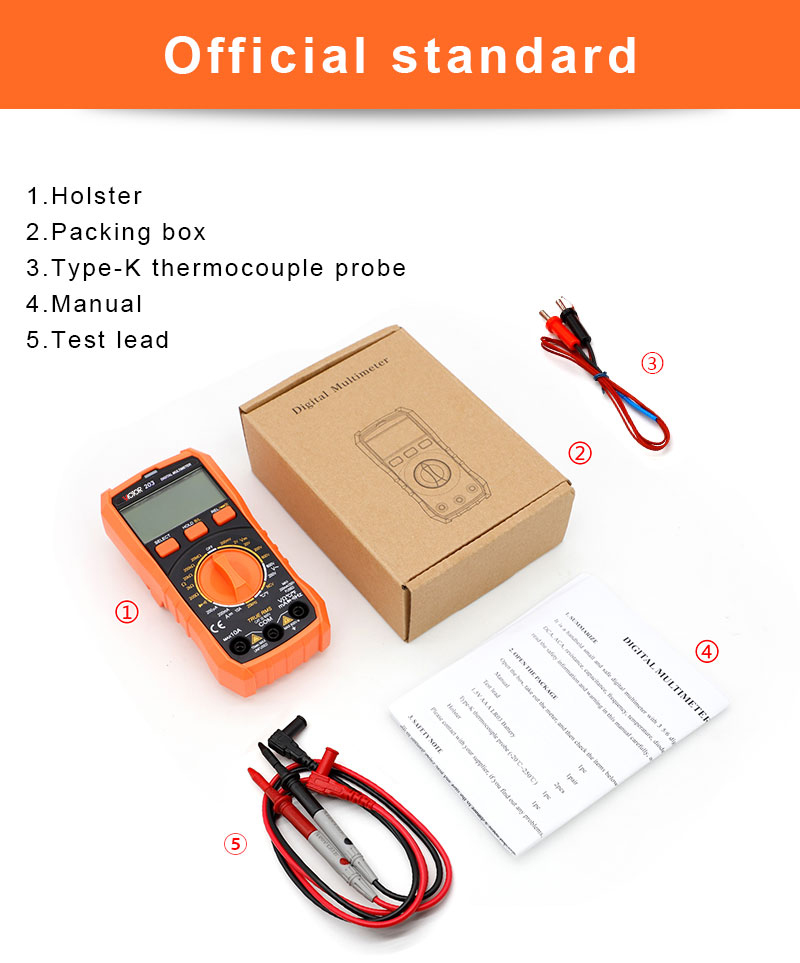

    2. OPEN THE PACKAGE

    Open the box, take out the meter, and then check the items below to make sure if they are missing or damaging:

    Manual 1pc

    Test lead 1pair

    1.5V AA A LR03 Battery 2pcs

    Type-K thermocouple probe (-20℃~250℃) 1pc

    Holster 1pc

    Please contact with your supplier, if you find out any problems.


    3. CHARACTERISTIC

    3-1. Display : LCD displaying.

    3-2. Max display: 5999(3 5/6 digit)auto polarity indication.

    3-3. Measuring method: A/D conversion

    3-4. Exploit the technology of button calibrating

    3-5. Sampling rate: approx.3 times/second.

    3-6. Over range indication: the MSD displays “OL”

    3-7. Low battery indication

    3-8. Operation environment: (0~40)℃

    relative humidity < 75% R.H

    3-9. Storage environment:(-20~60)℃

    relative humidity < 85% R.H.

    3-10. Power:2 * AAA 1.5V LR03 batteries

    3-11. Size: (146*72*50) mm

    3-12.Weight: approx. 232g(including batteries)


    4.Technical Data
    FunctionRange205205A
    DCV600mV±(0.5%+5)±(0.5%+5)
    6V/60V±(0.5%+3)±(0.5%+3)
    600V±(1.0%+10)±(1.0%+10)
    ACV6V/60V±(0.8%+5)±(0.8%+5)
    600V±(1.2%+10)±(1.2%+10)
    DCA600uA/6000uA±(1.0%+10)
    60mA±(1.2%+8)
    600mA±(1.2%+8)
    6A±(2.0%+5)
    10A±(2.0%+5)
    ACA600uA/6000uA±(1.0%+10)
    60mA±(1.5%+15)
    600mA±(1.5%+15)
    6A±(3.0%+10)
    10A±(3.0%+10)
    Resistance600Ω±(0.8%+5)±(0.8%+5)
    6kΩ±(0.8%+5)
    60kΩ/600kΩ/6MΩ±(0.8%+4)±(0.8%+4)
    60MΩ±(1.2%+10)
    Capacitance10nF±(5.0%+40)±(5.0%+40)
    100nF/1uF/10uF/100uF±(3.5%+20)±(3.5%+20)
    2mF±(5.0%+40)±(5.0%+40)
    Frequency10Hz/100Hz/1kHz/10kHz/100kHz/2MHz±(1.0%+10)±(1.0%+10)
    Temperature-20℃~1000℃<400℃ ±(1.0%+5)
    ≥400℃ ±(1.5%+15)
    -4℉~1832℉< 752℉±(1.0%+5)
    ≥752℉ ±(1.5%+15)
    Diode test
    Continuity alarm
    Data hold

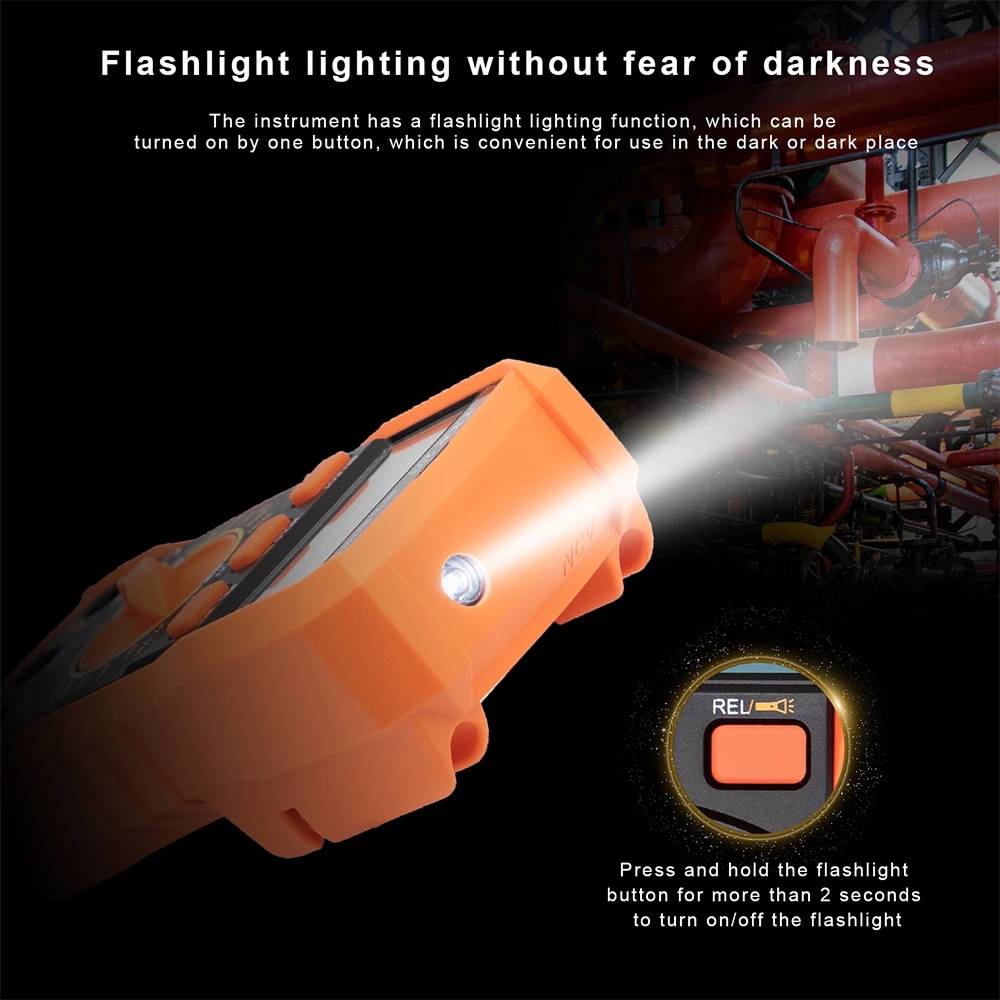

    Torch function
    Back light function
    NCV measurement
    Auto shutdown
    True RMS
    Operating methodManual rangeAuto range
    Low voltage display
    Display methodLCD display
    Max. display5999 (3 5/6 digits) Auto polarity display
    Sampling rateAbout 3 times/s
    Over range indicationThe MSD displays“OL”
    Dimension146mm*72mm*50mm
    WeightAbout 232g (include batteries)
