    LCD Display Pocket Clamp Meter Mini Digital Voltmeter Ammeter Dc 100v 10a

    Ask Lasest Price
    Brand Name : VICTOR
    Model Number : VICTOR 610C
    Certification : CE
    Price : 100pcs: USD9/pc; 100pcs to 500pcs: USD8.5/pc; 500pcs to 1000pcs: USD8/pc; Above 3000pcs: USD7.6/pc
    Payment Terms : T/T, Western Union, L/C,Paypal
    Supply Ability : 10000 pc available
    Delivery Time : 5-30 days
    • Product Details
    • Company Profile

    LCD Display Pocket Clamp Meter Mini Digital Voltmeter Ammeter Dc 100v 10a

    LCD Display Pocket Clamp Meter Mini Digital Voltmeter Ammeter Dc 100v 10a

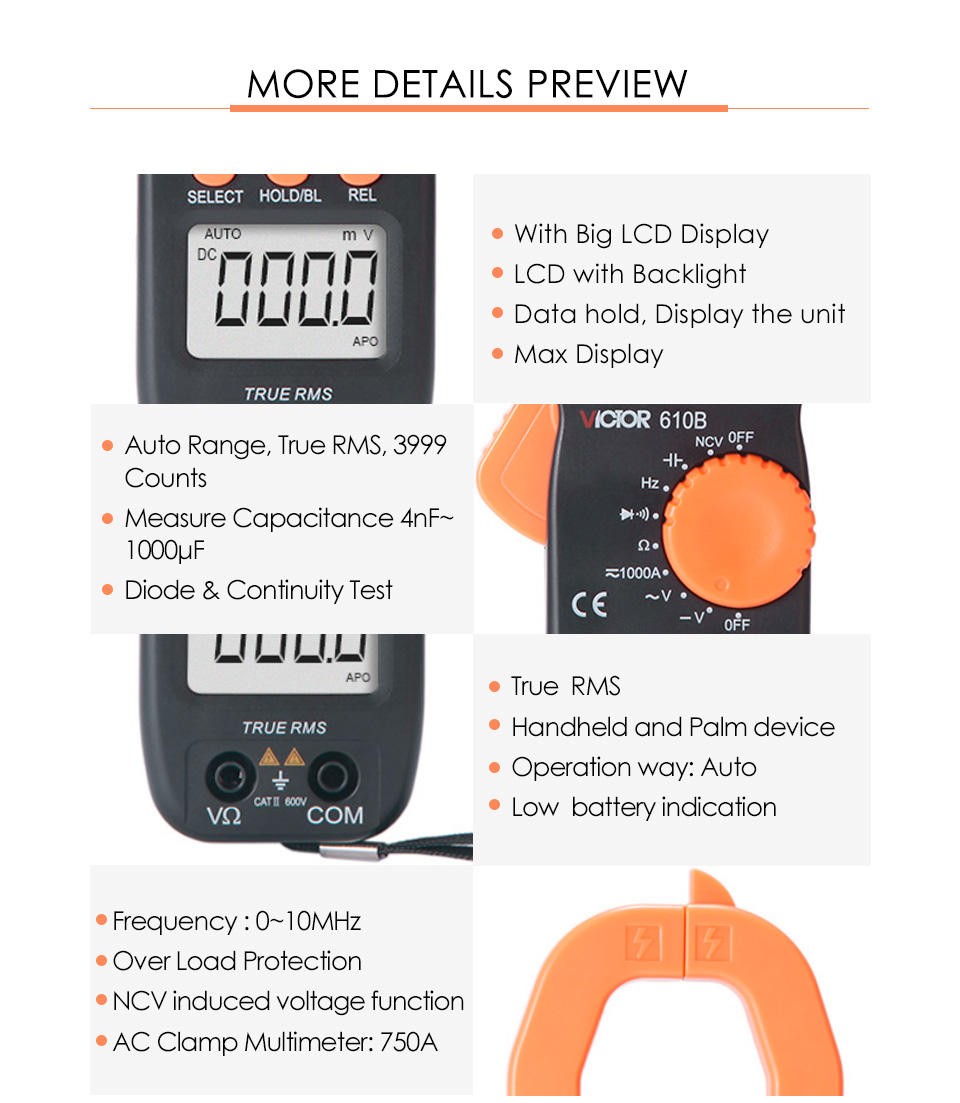

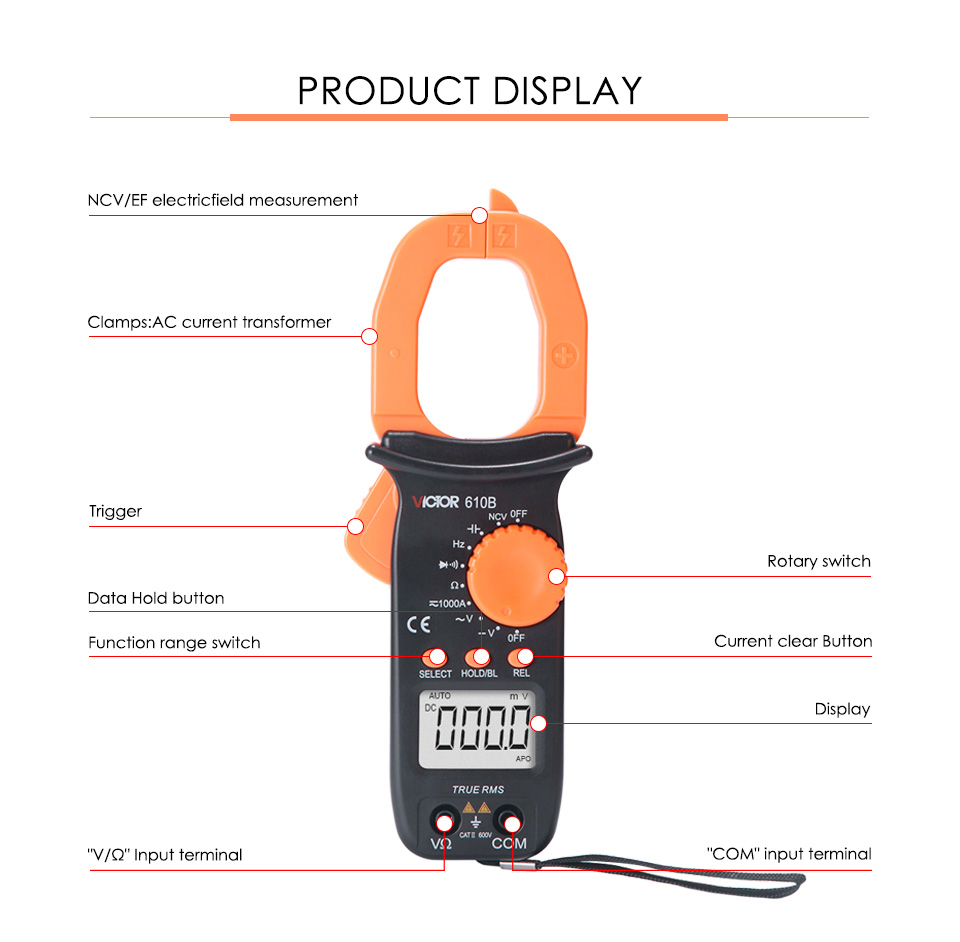

    VICTOR 610C Digital Clamp Meter 1999 counts Mini Ammeter AC Current Meter Voltage Resistance Tester Handheld Clamp-Meter


    SUMMARIZE

    This meter is a handheld automatic range digital multiemter which driven by battery. It can be used to measure such parameters as DCV, ACV, ACA, Resistance, Continuity Buzzer, Diode, etc.


    2. GENERAL FEATURE

    Displaying:Max. displaying:2000,

    Sampling rate: approx. 3 times/second.

    Polarity indication:Automatic negative polarity indication

    Over range indication:” OL” shown on the LCD

    Low battery indication:“ ” appears

    Operation environment:0℃~40℃,R.H.< 75%.

    Storage environment:-10℃~50℃,R.H.<80%.

    Power supply:(Size AAA battery)1.5V×2

    Size:198×73×37mm

    Weight:about 250g.

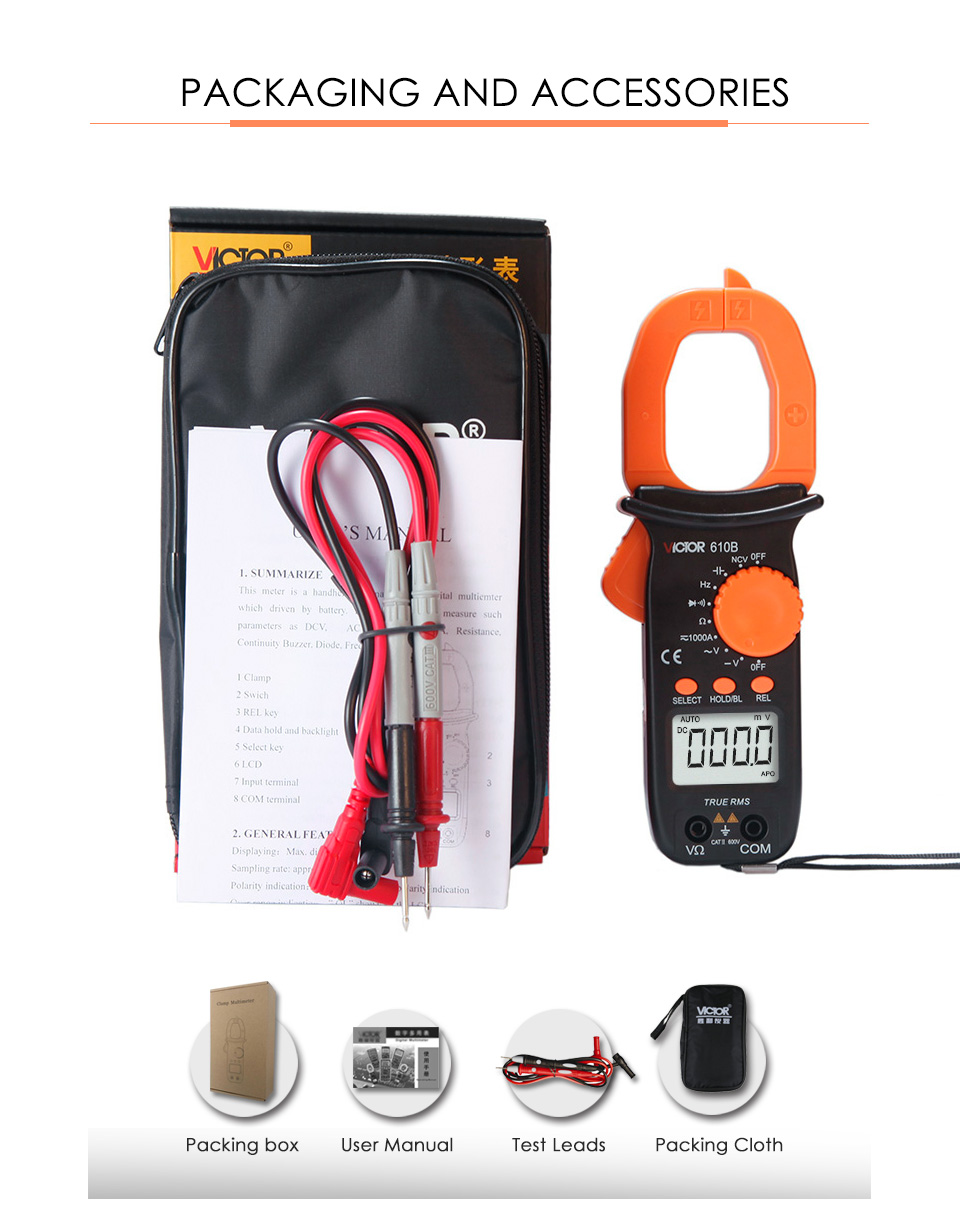

    Accessories:user’s manual,battery, probes.


    Technical Data


    ModelVICTOR 610BVICTOR 610C
    FunctionRangeAccuracyRangeAccuracy
    ACV4V/40V/400V±(1.0%+10)2V/20V/200V±(1.0%+10)
    750V±(1.0%+12)750V±(1.0%+12)
    DCV400mV/4V/40V/400V±(0.5%+7)200mV/2V/20V/200V±(0.5%+7)
    1000V±(1.0%+6)1000V±(1.0%+6)
    Resistance400Ω/4kΩ/40kΩ/400kΩ/4MΩ±(1.0%+5)200Ω/2kΩ/20kΩ/200kΩ±(1.0%+5)
    40MΩ±(1.2%+10)40MΩ±(1.2%+10)
    ACA40A/400A/1000A±(2.5%+10)2A/20A/200A/1000A±(2.5%+10)
    DCA40A/400A/1000A±(2.5%+10)
    Frequency(0~10) MHz±(0.3%+3)
    Capacitance4nF±(5.0%+40)
    40nF/400nF/4uF/40uF/400uF/1mF±(5.0%+10)
    Diode test
    Continuity alarm
    Data hold
    Low voltage display
    Auto power off
    Overload Protection
    NCV
    True RMS
    DisplayMax. display 4000, update 3 times/sMax. display 2000, update 3 times/s
    Polarity indicateCathode auto displayCathode auto display
    Overload indicateOL indicating on the LCDOL indicating on the LCD
    Low battery displayindicating on the LCDindicating on the LCD
    Operation temperature0℃~40℃, less than 75%RH0℃~40℃, less than 75%RH
    Storage temperature-10℃~50℃, less than 80%RH-10℃~50℃, less than 80%RH
    Battery type(Size AAA) 1.5V×2(Size AAA) 1.5V×2
    Size198*73*37mm198*73*37mm
    WeightAbout 250gAbout 250g
