IP65 Process VICTOR Digital Multimeter

Ask Lasest Price
Brand Name :	VICTOR
Model Number :	VICTOR 79A
Certification :	CE
Price :	USD220/pc
Payment Terms :	T/T, Western Union, L/C, Paypal
Supply Ability :	3000pcs available
Delivery Time :	5 to 30 days

Add to Cart

Product Details
Company Profile

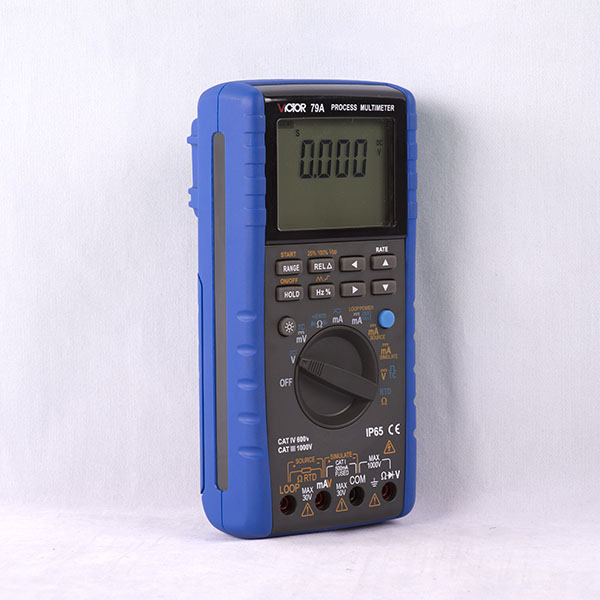

IP65 Process VICTOR Digital Multimeter

VICTOR 79A Digital Multimeter 2 In 1 4-20mA Signal Output Multimeter Process Signal Source 50MΩ 100KHz RTD RSKEJTNB Cu50 Pt100

Basic feature

An industrial tool combined DMMS and process signal source for on-spot maintenance.
Double color plastic shell to meet IP65 dustproof and waterproof grade, and can be used in harsh environment.
Complies with 600V CAT.IV, 1000V CAT.III safety standard.
Basic feature of input measurement
- Measurement functions include: AC voltage, DC voltage, AC current, DC current, Ohms, capacity, continuity, diode, frequency, RTD, TC.
- The displayed reading of measured voltage, resistance and diode is 5500 bytes, and the basic accuracy is 0.1%.
- The displayed reading of measured current is 55000 bytes, and the basic accuracy is 0.1%.
- Measurement speed ratio: 20 times / second for fast, and 5 times/ second for slow.
- True measured AC value, measurement bandwidth: 45Hz～400Hz

Selectable manual or auto range, measurement value held displays.
relative value measurement(REL_%)

Basic feature of output measurement

Max accuracy of output can reach 0.2%, and the output display is 5-digit.
Output function: DC voltage, DC current, Ohms, frequency, RTD, TC , SIMULATE function analog transmitter .
displays mA and % value simultaneously and provide 25% and 100% manual-step, auto-step and auto-ramping output function when outputting DC current
Built-in 24V loop circuit.

Loop test function

Provide 24V loop circuit and measure current simultaneously.
Built-in 24V loop circuit and loop current measurement
Built-in and selectable 250 Ω HART loop resistance and loop power supply, easy for HART communication equipment, without carrying load resistance and power.

Built-in temperature transmitter, auto cold-compensation, and display in ℃ or ℉.
Large LCD of double show, with white backlight.
The meter employs panel calibration technique, connects to standard device, undertakes panel calibration operation according to set range, and saves relevant calibrated data, fulfills the periodic calibration work stipulated by the meter to ensure the accuracy and performance.
Battery door, which is convenient to replace batteries and fuse.
The meter can supply power with four 5th alkaline batteries or Nimh batteries in the battery case, or use the adaptor to supply.
Other functions: auto power shut off, auto backlight shut, low electrical test, temperature unit setting ect.

Technical index of measurement functions

[adapt to one year after calibration 23℃±5℃,20～70% RH,accuracy=±(% settings + bytes)]

measurement function	range	measurement range	resolution	accuracy	remark
DC voltage DCV	50mV	-55.00mV～55.00mV	0.01mV	0.1%+4	Input resistance: about 100MΩ
	500mV	-550.0mV～550.0mV	0.1mV	0.1%+4	Input resistance: about 100MΩ
	5V	-5.500V～5.500V	0.001V	0.1%+4	Input resistance: 10MΩ
	50V	-55.00V～55.00V	0.01V	0.1%+4
	500V	-550.0V～550.0V	0.1V	0.1%+4
	1000V	-1000V～1000V	1V	0.1%+4
AC voltage ACV	5V	0～5.500V	0.001V	0.5%+4	Input resistance: 10MΩ <100pF 20Hz～1kHz 10%～110% range
	50V	0～55.00V	0.01V	0.5%+4
	500V	0～550.0V	0.1V	0.5%+4
	1000V	0V～750V	1V	0.5%+4
Ohms OHM	500Ω	0～550.0Ω	0.1Ω	0.1%+4	test current: ＜0.8 mA open-circuit voltage: ＜2.5V
	5KΩ	0～5.500KΩ	0.001KΩ	0.1%+4
	50KΩ	0～55.00KΩ	0.01KΩ	0.1%+4
	500KΩ	0～550.0KΩ	0.1KΩ	0.1%+4
	5MΩ	0～5.500 MΩ	0.001MΩ	1%+4
	50MΩ	0～55.00 MΩ	0.01MΩ	1%+4
DC current DCI	50mA	-55.000mA～55.000mA	0.001mA	0.1%+5	Voltage Drop ＜1.8 mV/mA response time: ≤1S
DC current DCI	500mA	-500.00mA～500.00mA	0.01mA	0.1%+5	Voltage Drop ＜1.8 mV/mA response time: ≤1S
AC current ACI	50mA	0.000mA～55.000mA	0.001mA	0.5%+10	Voltage Drop ＜1.8 mV/mA response time: ≤3S
AC current ACI	500mA	0.00mA～500.00mA	0.01mA	0.5%+10	Voltage Drop ＜1.8 mV/mA response time: ≤3S
frequency FREQ	10Hz	0～9.9999Hz	0.0001Hz	0.02%+4
	100Hz	0～99.999Hz	0.001Hz	0.02%+4
	1000Hz	0～999.99Hz	0.01Hz	0.02%+4
	10kHz	0～9.9999kHz	0.0001kHz	0.02%+4
	100kHz	0～99.999kHz	0.001kHz	0.02%+4
duty ratio DUTY		0.1%～99%	0.1%	1%
Diode DIODE	2V		0.0001V	1%+10
Continuity test COUNT	500Ω		0.1Ω	≤100ΩBB
Thermal couple TC	R	-40°C～1760°C	1°C	0.5%+3°C(≤100)°C 0.5%+2°C(＞100)°C	Employ ITS-90 temperature standard Errors for cold-end compensation is excluded in the accuracy Errors for Thermoelectric potential is excluded in the accuracy
	S	-200°C～1760°C
	B	400°C～1800°C
	K	-200°C～1350°C		0.5%+2°C(≤-100)°C 0.5%+1°C(＞-100)°C
	E	-200°C～700°C
	J	-200°C～950°C
	T	-200°C～400°C
	N	-200°C～1300°C
Resistance temperature RTD	Cu50	-50°C～150°C	1°C	0.5%+3°C	Employ Pt100-385 temperature standard. Measured current: about 0.8mA. Open circuit voltage: about 2V. Wire resistance is excluded in the accuracy.
Resistance temperature RTD	Pt100	-200°C～850°C	1°C	0.5%+3°C
CAP capacity	10nF	0～11.00nF	0.01nF	5%+50
	100nF	0～110.0nF	0.1nF	5%+5
	1000nF	0～1100nF	1nF	5%+5
	10µF	0～11.00µF	0.01uF	5%+5
	100µF	0～110.0µF	0.1uF	5%+5
	1000µF	0～1100µF	1uF	5%+50
	10mF	0～11.00mF	0.01mF	5%+50
	100mF	0～110.0mF	0.1mF	5%+50

Simulate output function [adapt to one year after calibration 23℃±5℃,20～70% RH,accuracy=±(% settings + bytes)]

measurement function	range	Output setting range	resolution	accuracy	remark
DC voltage DCV	100mV	-10.00～110.00mV	10μV	0.2%+4	Max output current: 0.5mA
	1000mV	-100.0～1100.0mV	100μV	0.2%+4	Max output current: 2mA
	10V	-1.000～11.000V	1mV	0.2%+4	Max output current: 5mA
DC current DCI	30mA	0.000～33.000mA	0.001mA	0.2%+4	20mA max load 1KΩ 30mA max load 600Ω
simulate transmitter SIMULATE	-30mA	0.000～-33.000mA	0.001mA	0.2%+4	20mA max load 1KΩ 30mA max load 600Ω
Loop power LOOP	24V			±10%	Max output current: 35mA
Ohms OHM	400Ω	0.0Ω～400.0Ω	0.1Ω	0.2%+4	Simulate current is±0.5～3mA When simulate current is±0.1～0.5mA,add additional 0.1Ω error. wire resistance is excluded in the accuracy
Thermal couple TC	R	0°C～1767°C	1°C	0.2%+3°C(≤100℃) 0.2%+2°C(＞100℃)	Employ ITS-90 temperature standard. Errors for cold-end compensation is excluded in the accuracy.
	S	0°C～1767°C
	B	600°C～1820°C
	K	-200.0°C～1372.0°C	0.1°C	0.2%+2°C(≤-100℃) 0.2%+1°C(＞-100℃)
	E	-200.0°C～1000.0°C
	J	-200.0°C～1200.0°C
	T	-250.0°C～400.0°C
	N	-200.0°C～1300.0°C
Resistance temperature RTD	PT100	-0200.0～0850.0	0.1°C	0.2%+0.6°C	Employ Pt100-385 temperature standard ±1mA simulate current wire resistance is excluded in the accuracy
Resistance temperature RTD	Cu50	-050.0～150.0	0.1°C	0.2%+0.6°C
Frequency FREQ	100Hz	1.0Hz～110.0Hz	0.1Hz	0.2%+2	square wave 50% duty ratio 1～11Vp-p
	1KHz	0.100KHz～1.100KHz	1Hz	0.2%+2
	10KHz	1.0KHz～11.0KHz	0.1KHz	0.2%+2

Technical Data

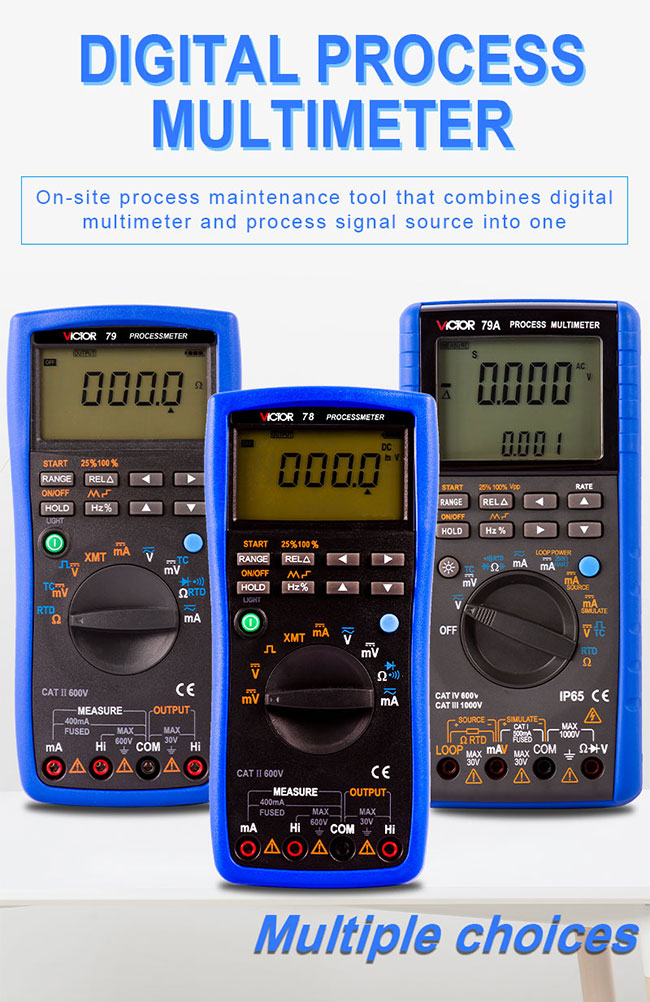

Project			VICTOR 79	VICTOR 79A
Measurement	DC voltage	Range	±400V	±1000V
		The highest resolution	0.01mV	0.01mV
		Basic accuracy	0.2%	0.1%
	AC voltage	Range	400V	750V
		The highest resolution	0.1mV	0.1mV
		Basic accuracy	0.5%	0.5%
	Resistance	Range	40MΩ	50MΩ
		The highest resolution	0.1Ω	0.1Ω
		Basic accuracy	0.2%	0.1%
	DC current	Range	±400mA	±500mA
		The highest resolution	10uA	1uA
		Basic accuracy	0.2%	0.1%
	AC current	Range	400mA	500mA
		The highest resolution	10uA	1uA
		Basic accuracy	0.5%	0.5%
	Thermocouple	Range	R,S,B,E,K,J,T,N	R,S,B,E,K,J,T,N
		The highest resolution	1°C	1°C
		Basic accuracy	0.5%	0.5%
	RTD	Range	Cu50,Pt100	Cu50,Pt100
		The highest resolution	1°C	1°C
		Basic accuracy	0.5%	0.5%
	CAP	Range	N/A	100mF
		The highest resolution		0.01nF
		Basic accuracy		5%
	Frequency		10Hz～100kHz	10Hz～100kHz
	Diode test		√	√
	Continuity beeper		√	√
	Data hold		√	√
	Relative value measurement		√	√
Source	DC voltage	Range	-10.00mV～110.00mV -0.5000V～5.5000V	-10.00mV～110.00mV -100.0mV～1100.0mV -1.000V～11.00V
		Resolution	0.01mV,0.1mV	0.001mV,0.01mV,0.1mV
		Basic accuracy	0.2%	0.2%
	Resistance	Range	0～400.0Ω	0～400.0Ω
		Resolution	0.1Ω	0.1Ω
		Basic accuracy	0.2%	0.2%
	DC current	Range	22mA	33mA
		Resolution	0.001mA	0.001mA
		Basic accuracy	0.2%	0.2%
	Simulating transmitter		√	√
	25％,100％Step output		√	√
	Automatic ramp		√	√
	Automatic step		√	√
	Display current and % of span		√	√
	Loop power		15V	24V
	Frequency		1.0Hz～11.0kHz	1.0Hz～11.0kHz
	Thermocouple		R,S,B,E,K,J,T,N	R,S,B,E,K,J,T,N
	RTD		Cu50,Pt100	Cu50,Pt100
Loop detection	The 24V loop power supply and measuring the current		N/A	√
Loop detection	Built in 250 Ω HART loop resistance		N/A	√
Power Supply			4×1.5V AAA Alkaline battery	4×1.5V AA Alkaline battery
Auto Power-off			√	√
Backlight			√	√
Safety			CAT Ⅲ 600V, Pollution degree 2	CAT Ⅲ 600V, Pollution degree 2
Size			205×95×42	206×97×60
Weight			About 500g	About 500g

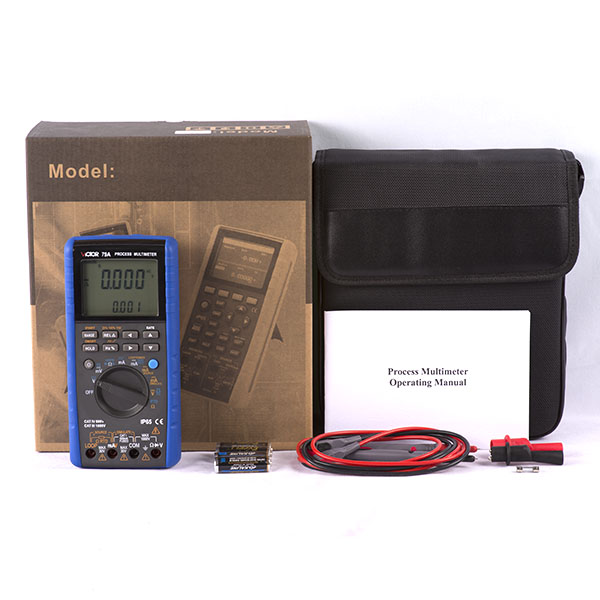

Accessories			Test line, manual,fuse	Test line, manual,fuse
Standard Quantity Per Carton			10pcs	10pcs
Standard Carton Measurement			395mm385mm260mm	395mm385mm260mm
Standard Carton Cross Weight			10.2Kg	12Kg
