    VC9808+ VICTOR Digital Multimeter 2000uF Capacimeter 10MHz Frequency

    Ask Lasest Price
    Brand Name : VICTOR
    Model Number : VC9808+
    Certification : CE
    Price : 100pcs: USD14.5/pc; 100pcs to 500pcs: USD13.8/pc; 500pcs to 1000pcs: USD13.2; Above 3000pcs: USD12.6pc
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 10000pcs available
    Delivery Time : 5 to 30 days
    • Product Details
    • Company Profile

    VC9808+ VICTOR Digital Multimeter 2000uF Capacimeter 10MHz Frequency


    VC9808+ VICTOR Digital Multimeter 2000uF Capacimeter 10MHz Frequency


    Multimeter 9808+ High precision digital 2000uF capacimeter 10MHz Frequency temperature and inductance measuring with LCR tester


    GENERAL

    The instrument is a stable and good performance digital multimeter driven by battery.

    It uses the LCD with 70*50mm figure to make the reading clear. Unit symbol
    displaying, backlight and the function of overload protection make operation is
    convenient.
    The instrument has the function of measuring DCV, ACV, DCA, ACA, resistance,
    capacitance, inductance, temperature and frequency, and diode, triode and
    continuity test. The instrument takes dual-integral A/D converter as key point, is an
    excellent tool.

    OPEN PACKING FOR CHECKING

    Open the box, take out the meter, checking the items below if they are missing or damaging:

    K type probe (-20℃~250℃) 1pc

    1.5V AAA LR03 Battery 4pcs

    Instruction 1pc

    Test leads 1pair

    Battery case 1pc


    GENERAL SPECIFICATION

    • Displaying: LCD displaying
    • Max. indication: 1999(3 1/2), auto polarity indication
    • Measuring method: dual slope A/D transfer
    • Key calibration technology
    • Sampling rate: approx. 3 times/sec
    • Over range indication: MSD displays “OL”
    • Low battery indication
    • Operation: 0~40℃,relative humidity <75%
    • Storage environment:-20℃~60℃, relative humidity <85%RH;
    • Power:Four 1.5V AAA battery LR03
    • Size: 186×92×52 mm
    • Weight: approx.395g (including 1.5V batteries)

    Technical Data

    Basic FunctionRangeVC9808+
    DC Voltage200mV/2V/20V/200V±(0.5%+3)
    1000V±(0.8%+10)
    AC Voltage200mV±(0.8%+5)
    2V/20V/200V±(0.8%+5)
    1000V±(1.2%+10)
    DC Current200uA/2mA /20mA±(0.8%+10)
    200mA±(0.8%+10)
    20A±(2.0%+5)
    AC Current200uA/2mA /20mA±(0.8%+10)
    200mA±(0.8%+10)
    20A±(2.0%+5)
    Resistance200Ω±(0.8%+5)
    2kΩ/20kΩ/200kΩ/2MΩ±(0.8%+3)
    20MΩ±(1.0%+25)
    200MΩ±(5.0%+30)
    Inductance2mH/20mH/200mH/2H±(2.5%+30)
    20H±(2.0%+5)
    Capacitance20nF/200nF/2uF/20uF/200uF±(3.5%+20)
    2mF±(5.0%+10)
    Frequency10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/20MHz±(1.0%+3)
    Celsius(-20~1000)℃±(1.0%+5)
    Fahrenheit(-4~1832)℉±(1.0%+5)
    Special Function
    Diode/Transistor
    Continuity Buzzer
    Low battery indication
    HoldPeak Hold

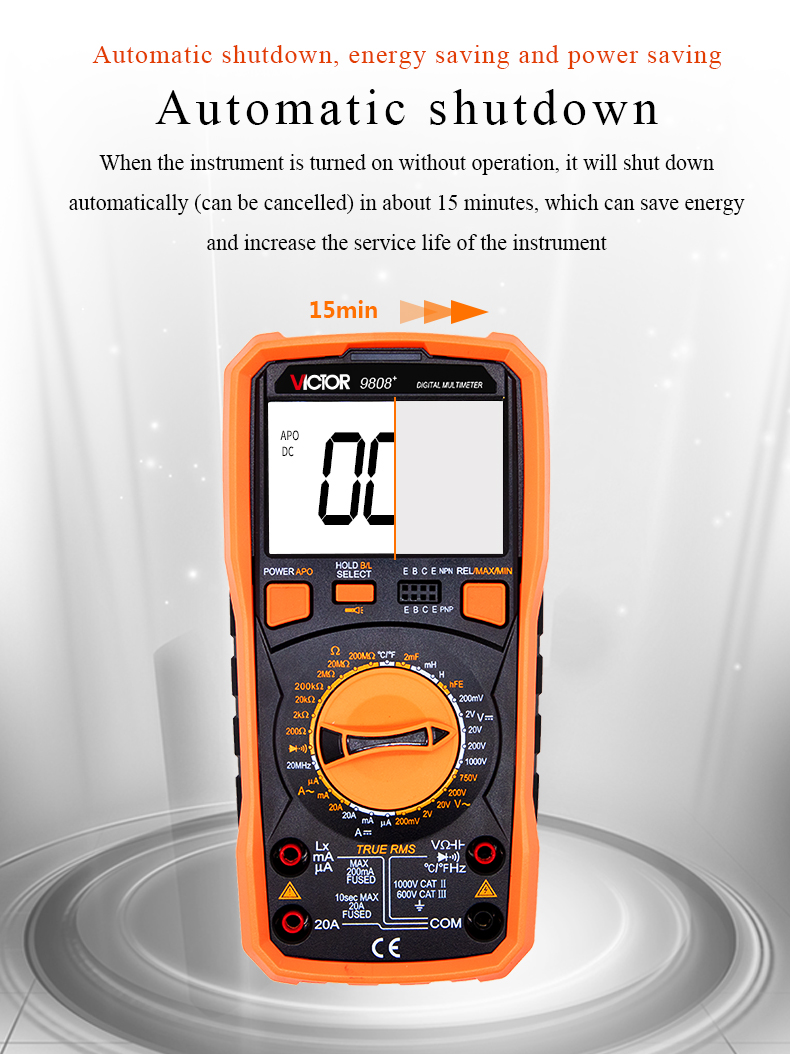

    Auto power off
    Backlight/Torch
    Function protection
    200mA/20A protection
    Input impedance10МΩ
    Sampling rate3 times/s
    AC frequency response40-1000Hz
    Operation wayManual range
    Max. Display1999
    LCD Size70*50mm
    Battery

    1.5V AAA LR03 Battery


    General Characters

    Product ColorCase: black ; Holster color: orange
    Product Net WeightApprox. 395g
    Product dimension186*92*52mm
    Standard AccessoriesTest leads , battery ,instruction manual,TP01 K style temperature probe (with temperature function)
    Standard Quantity Per Carton30Pcs
    Standard inner packingColor box
    Carton Size465*317*506mm
