4000 Counts Digital Clamp Meter Multimeter True RMS Resistance Capacitance

VICTOR606B Digital Clamp Meter AC Multimeter 4000 Counts True RMS Resistance Capacitance Temperature Frequency Electrical

1. SUMMARIZE

This meter is a handheld automatic range digital multiemter which driven by battery. It can be used to measure such parameters as DCV, ACV, ACA, Resistance, Continuity Buzzer, Diode, Frequency, Temperature, etc.

2. GENERAL

Displaying:Max. displaying:4000,

Sampling rate: approx. 3 times/second.

Polarity indication:Automatic negative polarity indication

Over range indication:” OL” shown on the LCD

Low battery indication:“ ” appears

Operation environment:0℃～40℃,R.H.< 75%.

Storage environment:-10℃～50℃,R.H.<80%.

Power supply:(Size AAA)1.5V×2

Size:193×73×37mm

Weight:about 220g.

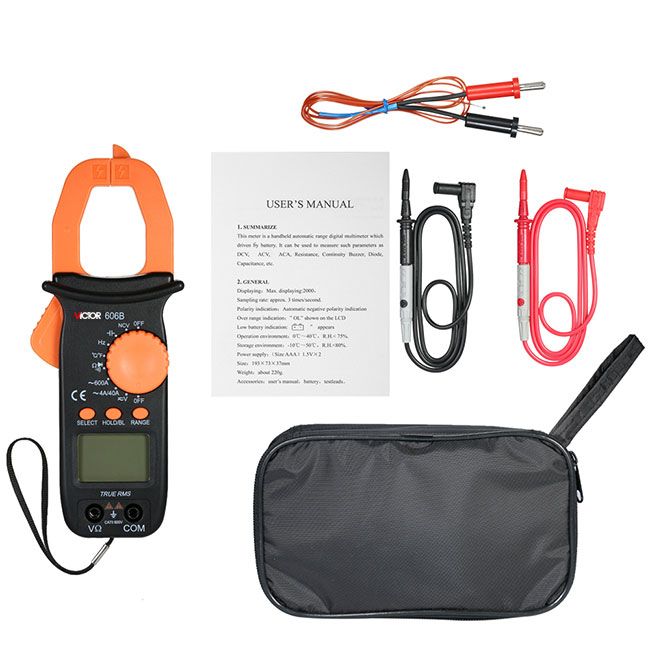

Accessories:user’s manual,battery,testleads,temperature probes.

3. TECHNICAL CHARACTERISTIC

Accuracy:±(a%×rdg＋d) Temperature:(23±5)℃,R.H.<75%

3-1. ACV(V～)

Input impedance:10MΩ

Frequency response:SIN wave and triangular wave is 40Hz～1kHz, other wave is 40Hz～200Hz

3-2. DCV

Input impedance:10MΩ

3-3. RESISTANCE (auto range)

3-4. ACA A～(auto range)

Frequency response:50～60Hz

3-5. FREQUENCY Hz(auto range)

Shows zero when the signal is less than 3Hz；sensitivity:1V RMS

3-6.CAPACITANCE (auto range)

3-7.TEMPERATURE ℃/℉
