    20000A Electric Power Tester High Low Voltage Nuclear Phase Ammeter

    Ask Lasest Price
    Brand Name : VICTOR
    Model Number : VICTOR 1700
    Certification : CE
    Price : USD480/pc
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 10000PCS
    Delivery Time : 5 to 30 days
    • Product Details
    • Company Profile

    20000A Electric Power Tester High Low Voltage Nuclear Phase Ammeter

    20000A Electric Power Tester High Low Voltage Nuclear Phase Ammeter


    VICTOR 1700 Current Detector Wireless High-Low Voltage Nuclear Phase Ammeter Electricity Leakage Patrol Of Multi-Conductor Cable

    Brief Introduction

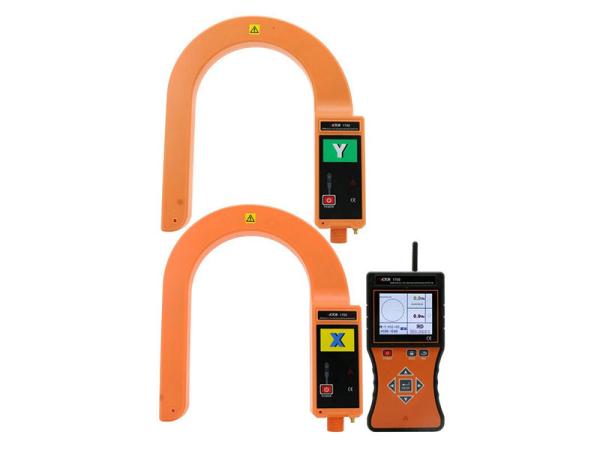

    1700 Wireless High Voltage Nuclear Phase Ammeter checking instrument, also known as smart wireless high voltage voice phase checking instrument, wireless high voltage phase checking instrument, referred to as phase checking instrument or phase checking meter, contains wireless receiver, XY detector, retractable insulated rod and other components. The receiver contains a 3.5-inch true color LCD screen, which

    can show the phase checking results, phase, frequency, and vector diagram instructions at the same time, which makes it clear and intuitive.

    The phase checking distance on the open ground is up to 1600m far, full intelligent phase checking of the voltage line covers the voltage of 10V

    ~ 550kV, in which the bare wire voltage of 35kV and below can be directly conducted with contact phase checking, and the bare wire voltage of over 35kV can be directly conducted with non-contact phase checking. Noncontact phase checking is to make the detector closer to the wire under test, and when the electric signal is inducted, the phase checking will be completed. This method avoids direct contact with the high voltage wire, so it is safer! The phase checking instrument can also function as high-voltage electroscope, high-pressure phase meter and high-pressure phase sequence meter, which can be used for testing electricity, phase sequence test, transformer group judgment and so on.


    Technical Specification


    VICTOR 1700
    Functionphase checking of wireless high-low voltage, current, leakage current, frequency, phase, phase sequence and electricity verification tested; electricity leakage patrol of multi-conductor cable
    Power SupplyDC 3.7V chargeable lithium battery, USB charging portal, working continuously for 10h
    Transmission Method315MHz 433MHz wireless transmission
    Nuclear Phase Distance150m
    Display Mode3.5-inch true color LCD display
    Tested Line DiameterФ168mm Conductor, or 168mm×245mm bus bar
    RangePhase: 0.0°~360.0°; Phase checking voltage level: AC 10V~550kV; Frequency: 45Hz~75Hz; current: 0~20000A
    Resolution0.1°; 0.1Hz; 10mA
    Accuracyphase: ≤±10° ; frequency: ≤±2Hz; current: 0~6000A, ±3%±5dgt; 6000A~2000A, ±4%±5dgt
    Phase JudgeIn phase:-30°~30°; out of phase: 90°~150° and 210°~270°
    Voice FunctionVoice such as in phase, out of phase, X signal normal, Y signal normal, etc.
    Size of Insulation RodAbout 5m long after extended; about 1m long after drawn back (5 nodes)
    Phase Checking MethodContact phase checking: When the bare wire voltage is less than 35kV, or less than 110kV with a safety insulation sheath wire, adopt contact phase checking. (operating with an insulation rod)
    Noncontact phase checking: When the bare wire voltage is more than 35kV, or more than 110kV with a safety insulation sheath wire, adopt noncontact phase checking. (operating with an insulation rod)
    Automatic ShutdownAbout 15mins after startup, the instrument will be automatically shut down to reduce battery consumption
    Rated CurrentDetector: 35mA max; Receiver: 300mA max
    Instrument MassDetector: 496g (including battery) Receiver: 395g (including battery)
    Insulation rod: 1.45kg Total mass: 13.5kg (including box)
    Working Humidity And Temperature-10℃~40℃; below 80%Rh
    Storage Humidity And Temperature-10℃~60℃; below 70%Rh
