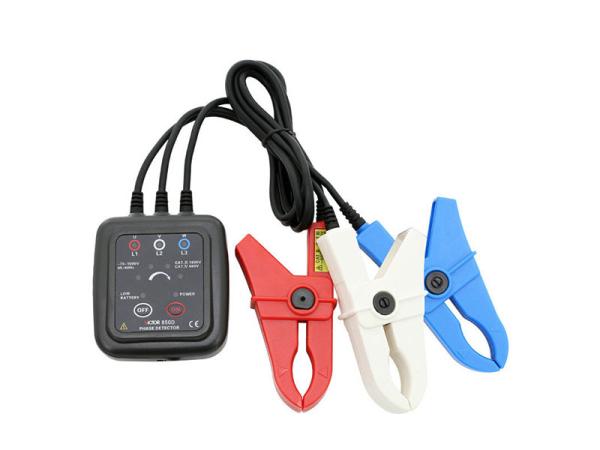

VICTOR 850D Three Phase Sequence Tester Power Inspection Non Contact

VICTOR850D Non-Contact Three Phase Indicator Live Line Detection With LED Light Indicator Simple Power Inspection

Introduction

850C,850D Non-contact Phase Detector breakthrough the traditional method of phase detection. The traditional method is to connect three exposed clips or probes to three bared live wires, so it need to disconnect the three phase wires. While 850C,850D Non-contact Phase Detector adopts non-contact measurement, no need to disconnect wires, no need to touch high voltage bared live wires. With the three clamps clip on the insulation layer of three phase live wires, then the phase can be detected, meanwhile sound and light indicating positive or negative states. Instrument base plate is provided with a magnet, the operation more convenient.

850C,850D Non-contact Phase Detector also have the functions of live wire examination, power inspection, phase deficiency judgment, breakpoints finding, breakpoints positioning.

850C,850D Non-contact Phase Detector is a convenient and fast tool for phase detection, with clear display. It improves the safety of field testing, ensures the safety of operators, increase productivity.

This non-contact Phase Detector breakthrough the traditional method of phase detection. It also have the functions of live wire examination, power inspection, phase deficiency judgment, breakpoints finding, breakpoints positioning.

Technical Specification

• Power Supply: 3V DC (R6P×2 manganese alloy batteries, continuously working for 70 hours)
• Performance-guarantee Range: AC70-1000V, 45/65Hz (sine wave, continuously), static induction.
• Diameter of wires can be clamped: ø1.6mm-ø16mm
• Display:

【Positive Phase Sequence】

The four phase-sequence lamps blink in order (clockwise).

【Negative Phase Sequence】

The four phase-sequence lamps blink in order (counterclockwise).

【Line-voltage Indication】L1,L2,L3 lamp light up.

【Default Phase】L1/L2/L3 lamp is off.

【Open Circuit】L1/L2/L3 lamp is off.

Buzzer:

【Positive Phase Sequence】The buzzer sounds intermittently.

【Negative Phase Sequence】The buzzer sounds continuously.

Power Indication:

Power ON lamp: lights up (Power ON), LOW BATTERY lamp light up.

• Magnetic force: Instrument base plate is provided with a magnet, suction hanging in the electrical box, can withstand 800g quality.
• Auto Power Off: The power will be turned off automatically if the instrument remains idle for 5 minutes after the power is turned on.
• Dimension: 70W×75H×30D (mm)
• Cable Length: 0.6m
• Weight: 200g
• Working Temperature and Humidity: -10℃-55℃; below 80%Rh
• Storage Temperature and Humidity: -20℃-60℃; below 90%Rh
• Maximum Rated Voltage: AC1000V
• Dielectric Strength: 5.4kVrms
• Maximum Rated Power: 300mVA

Technical Data
