    VICTOR 81D Auto Ranging Digital Multimeter

    Ask Lasest Price
    Brand Name : VICTOR
    Model Number : VICTOR 81D
    Certification : CE
    Price : 100pcs: USD7.9/pc; 100pcs to 500pcs: USD7.5/pc; 500pcs to 1000pcs: USD7.1/pc; Above 3000pcs: USD6.8/pc
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 10000pcs available
    Delivery Time : 5 to 30 days
    • Product Details
    • Company Profile

    VICTOR 81D Auto Ranging Digital Multimeter

    VICTOR 81D Mini Digital Multimeter 3999 Counts True RMS Temperature Capacitance Frequency Diode Tester Auto Range Multimetro


    Product Descriptiopn


    1. Multifunction:Can measure AC/DC voltage,AC/DC current,resistance,capacitance,frequency,duty cycle,temperature,diode and continuity.

    2. Portable design:Small and light weight,there is a back bracket for supporting multimeter,convenient to operate.

    3. Wide range of applications:It's a perfect tool for the laboratory,factory and home.


    4. Clear to read:With large LCD display and data hold function,easy to read data.

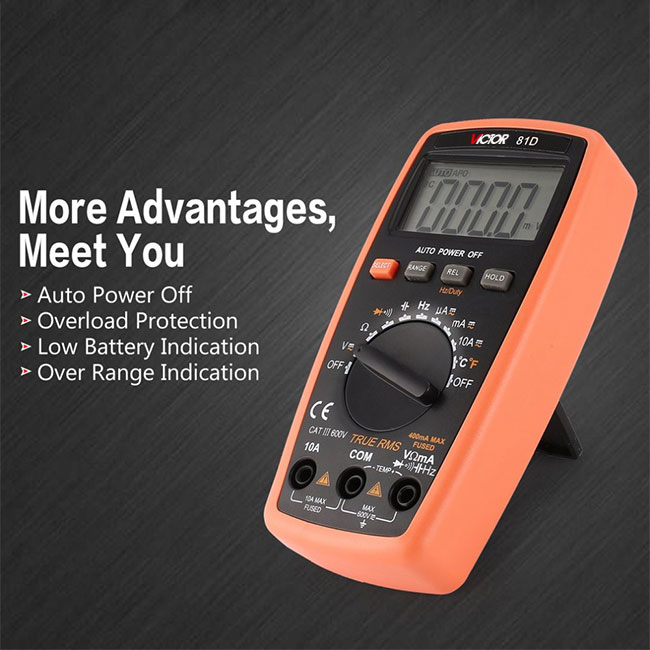

    5. More advantages:Auto/manual range switching,true RMS,low battery indication,auto power off,over range indication and overload protection.


    1. This 81D is a handheld mini digital multimeter,high reliability and portability,a perfect tool for the laboratory,factory and home.

    2. It can measure AC/DC voltage,AC/DC current,resistance,capacitance,

    frequency,duty cycle,temperature,diode and continuity.

    3. Moreover,more advantages such as data hold,auto/manual range switching,true RMS,low battery indication,auto power off,over range indication and overload protection.


    Technical Data

    Basic Function

    Range

    Basic accuracy

    DC Voltage

    400mV/4V/40V/400V/600V

    ±(0.5%+4)

    AC Voltage

    4V/40V/400V/600V

    ±(0.8%+6)

    DC Current

    400uA/4000uA/40mA/400mA/10A

    ±(1.0%+10)

    AC Current

    400uA/4000uA/40mA/400mA/10A

    ±(1.5%+10)

    Resistance

    400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

    ±(0.8%+4)

    Capacitance

    4nF/40nF/400nF/4uF/40uF/100uF/1000uF

    ±(3.5%+8)

    Frequency

    1Hz/10Hz/100Hz/1kHz/10kHz/100kHz/30MHz

    ±(0.5%+10)

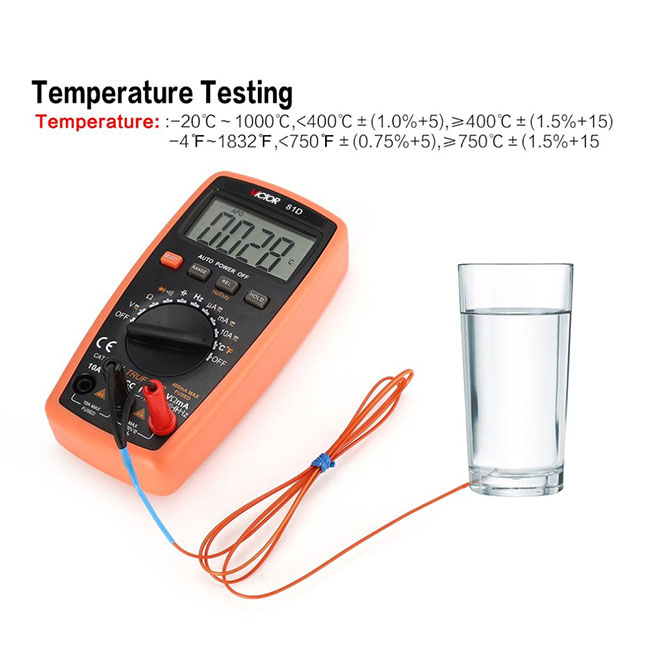

    Celsius

    (-20-1000)℃ (-4~1832)℉

    ±(1.0%+5)


    Special Function


    Diode test & Continuity buzzer

    Low battery indication

    Data hold

    Auto power off

    Function protection

    10A fuse

    Shockproof protection

    self-resume fuse protection for mA

    Unit symbol display

    Relative value measurement

    Duty cycle measurement

    0.1%-99.9%

    Input impedance

    10MΩ

    Sampling rate

    3 times/s

    AC Frequency response

    (50-200)Hz

    Operation way

    Auto range

    Max. Display

    3 3/4 (3999)

    LCD size

    57×33mm

    Battery

    3V(1.5×2)


    General Characters

    Product color

    Case: black; Holster color:orange

    Product Net Weight

    Approx: 200g(including battery)

    Product Dimension

    145×80×30mm

    Standard Accessories

    Test leads,battery,instruction manual,TP01 K style temperature probe,

    Standard inner packing

    Color box

    Standard Quantity Per Carton

    60Pcs

    Carton size

    470×325×350mm

    Standard Gross Weight

    Approx:20kg
