22000 Counts Digital Auto Range Multimeter LCD Display VICTOR 86E

VICTOR 86E Auto Range Digital Multimeter 22000 counts 4 1/2 digital Large LCD Display instrument with USB interface Capacitance

General

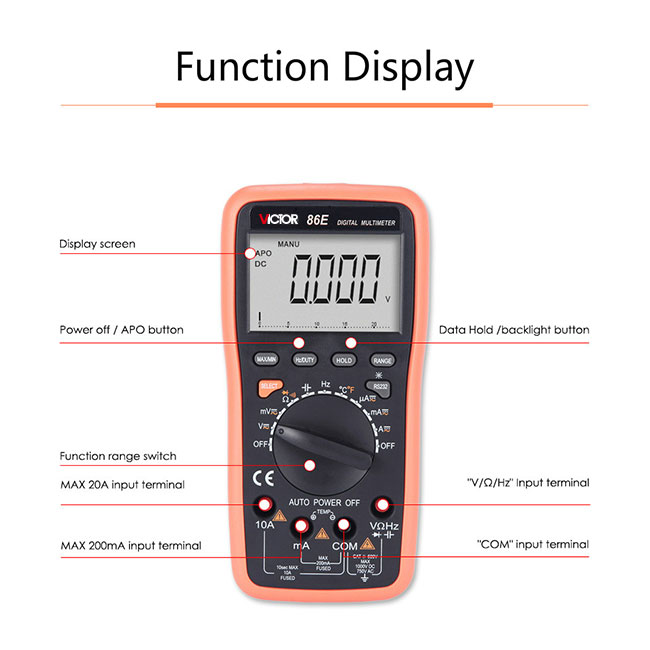

It is a good performance and Auto Range 4 1/2 digital instrument with USB interface, driven by battery. It adopts the LCD with 42mm high figure to make the reading very clear and it possesses the Data Hold and Auto Power Off function to make the use more convenient.
This instrument has the function of measuring ACV, DCV, ACA, DCA, Resistance, Capacitance, Temperature, Diode, Continuity, Frequency, and Duty Circle, etc. It takes the dual-integral A/D Converter as core, and possesses the Auto Range and Manual Range selection function. It is an excellent tool and most suitable for lab, factory, maintenance and repair users.

II, Open-Package Inspection
Open the gift box and take out the instrument, carefully check the following accessories. If any accessory is missed or damaged, please contact the manufactory at once.
●Digital Multimeter ………………………….. 1PC
● Holster…………………………………………….1PC
● Operation Manual………………………………..1PC
● Test Leads………………………………………..1SET
● Temperature Probe (K Type Thermocouple) …1PC
● USB Interface Jack………………………………1PC
● Software CD……………………………………..1PC
● 9V Battery……………………………………….1PC

General Features:

1-1 Display: LCD

1-2 Max Display: 22000 (4 1/2) digits automatic polarity display and unit display.

1-3 Measuring method: dual-integral A/D converter

1-4 Sampling rage:2 times/second

1-5 Over range indication: display “OL”

1-6 Low battery indication

1-7 RS232 serial data transmission

1-8 Auto Power Off function (No Auto Power Off function at the output mode of RS232)
1-9 Operation environment: 0～40℃,relative humidity <80%

1-10 Storage environment: -10～50℃,relative humidity <80%

1-11 Power: 1pcs 9V batteries (NEDA1604/6F22 battery)

1-12 Dimension: 192mm x 95mm x 48mm (L*W*H)

1-13 Weight: Approx. 390g (including batteries)
