    VFC True RMS NCV VICTOR 1000V 1000A Digital Clamp Meter 5999 Counts

    Ask Lasest Price
    Brand Name : VICTOR
    Model Number : VICTOR 610B+/ 610C+
    Certification : CE
    Price : VICTOR610B+ USD18/pc VICTOR610C+ USD9.2/pc
    Payment Terms : T/T, Western Union, L/C,Paypal
    Supply Ability : 10000 pc available
    Delivery Time : 5-30 days
    • Product Details
    • Company Profile

    VFC True RMS NCV VICTOR 1000V 1000A Digital Clamp Meter 5999 Counts

    VICTOR 610B+ 610C+ 1000V 1000A Digital Clamp Meter 5999 counts VFC True RMS NCV Live Flashlight clamp multimeter


    SUMMARIZE

    This meter is a handheld automatic range digital multiemter which driven by battery. It can be used to measure such parameters as DCV, ACV, ACA and DCA, Resistance, Continuity Buzzer, Diode, Frequency etc.


    GENERAL FEATURE

    Displaying:Max. displaying:5999,

    Sampling rate: approx. 3 times/second.

    Polarity indication:Automatic negative polarity indication

    Over range indication:” OL” shown on the LCD

    Low battery indication:“ ” appears

    Operation environment:0℃~40℃,R.H.< 75%.

    Storage environment:-10℃~50℃,R.H.<80%.

    Power supply:(Size AAA battery)1.5V×2

    Size:230×75×40mm

    Weight:about 313g.

    Accessories:user’s manual,battery, probes.


    Technical Data

    Model610B+610C+
    DCV600mV/6V/60V/600V±(0.5%+7)600mV/6V/60V/600V±(0.5%+7)
    1000V±(1.0%+6)1000V±(1.0%+10)
    ACV6V/60V±(1.0%+10)6V/60V±(1.0%+10)
    600V/750V±(1.0%+12)600V/750V±(1.0%+12)
    Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ±(1.0%+5)600Ω/6kΩ/60kΩ/600kΩ/6MΩ±(1.0%+5)
    20MΩ±(1.5%+15)20MΩ±(1.5%+15)
    60MΩ±(2.5%+20)60MΩ±(2.5%+20)
    Low Impedance6V/60V±(1.0%+10)6V/60V±(1.0%+10)
    300V±(1.0%+12)300V±(1.0%+12)
    DCA60A/600A/1000A±(4.0%+10)//
    ACA60A/600A/1000A±(4.0%+10)6A/60A/600A/1000A±(4.0%+10)
    Frequency10Hz~10MHz±(0.3%+3)//
    Capacitance1nF±(5.0%+40)//
    10nF/100nF/1uF/10uF/100uF/1mF/10mF±(5.0%+10)//
    Temperature-20℃~1000℃ (-4-1832)℉±(2.0%+5)//
    Continuity alarm
    Data hold
    Low voltage display
    Auto power off
    Max/Min
    Flashlight
    Overload Protection
    Living Wire Detecting
    INRUSH

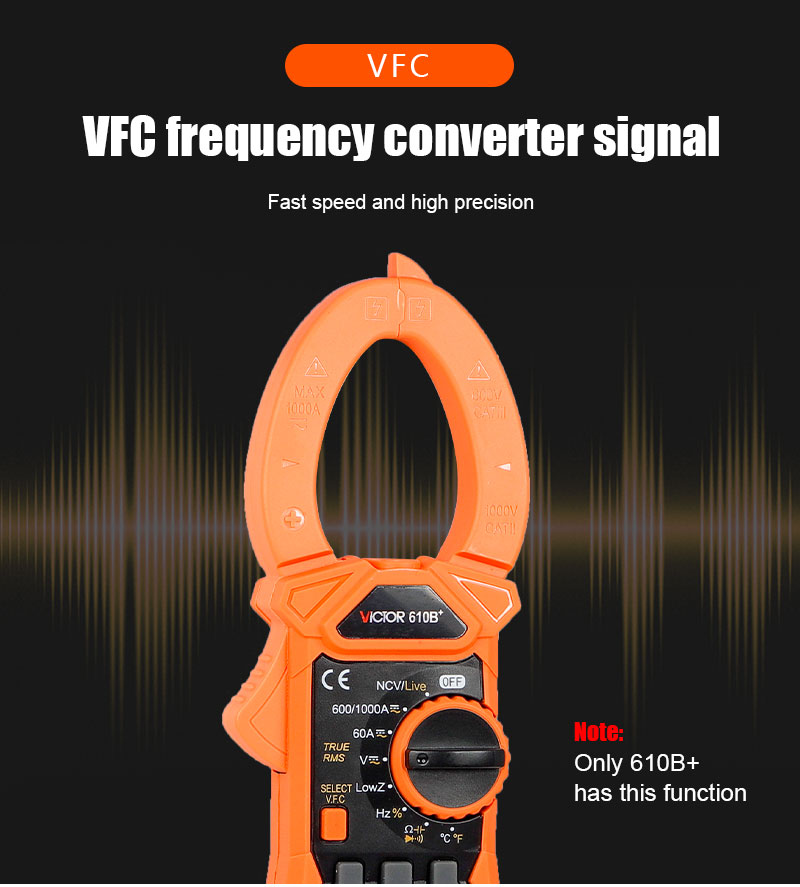

    VFC
    NCV
    True RMS
    Auto power offabout 15 minutesabout 15 minutes
    DisplayLCD Display, Max. display 5999, update 3 times/sLCD Display, Max. display 5999, update 3 times/s

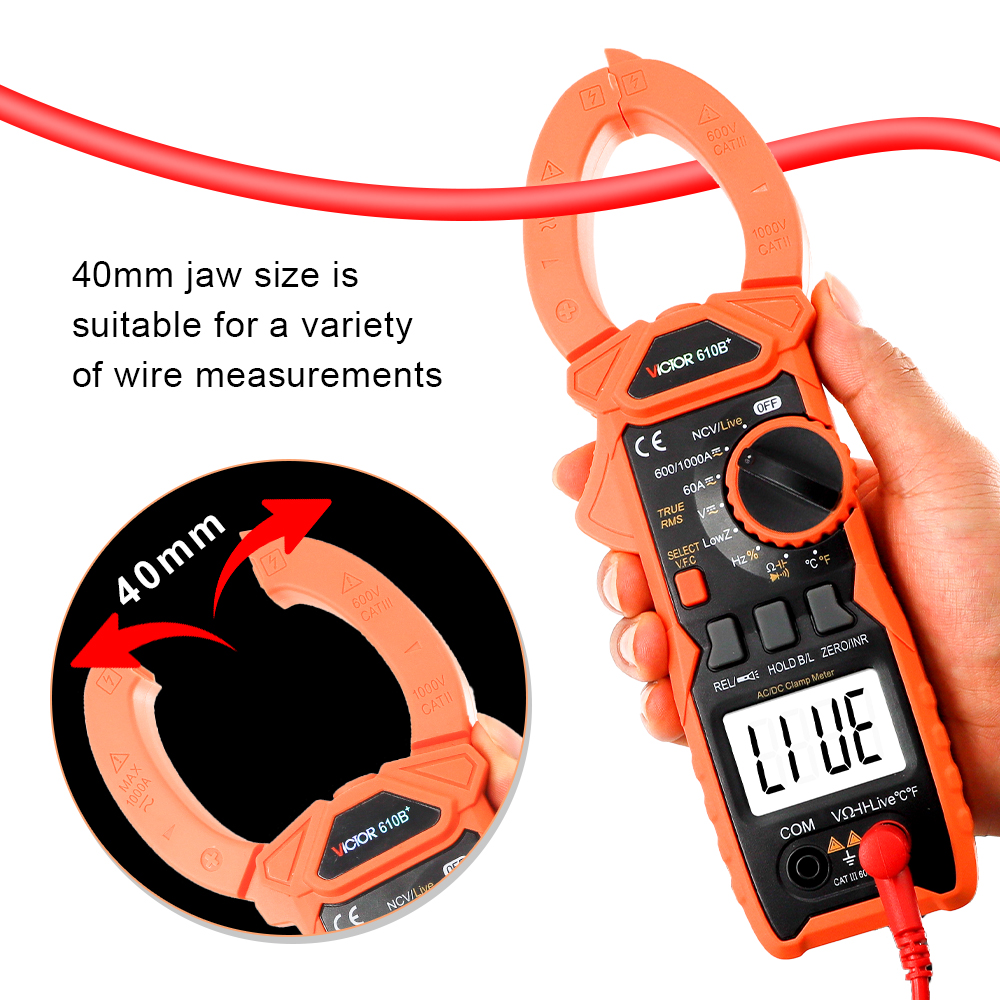

    Jaw opening40mm40mm
    Polarity indicateCathode auto displayCathode auto display
    Overload indicateOL indicating on the LCDOL indicating on the LCD
    Low battery displayindicating on the LCDindicating on the LCD
    Operation temperature0℃~40℃, less than 80%RH0℃~40℃, less than 80%RH
    Storage temperature-10℃~50℃, less than 80%RH-10℃~50℃, less than 80%RH
    Battery type(Size AAA) 1.5V×2(Size AAA) 1.5V×2
    Size230*75*40mm230*75*40mm
    WeightAbout 313gAbout 313g
