Non Contact 5/6 Digit Pen Type Multimeter 600V 600mA True RMS Multimeter

    Buy cheap Non Contact 5/6 Digit Pen Type Multimeter 600V 600mA True RMS Multimeter from wholesalers

    Buy cheap Non Contact 5/6 Digit Pen Type Multimeter 600V 600mA True RMS Multimeter from wholesalers
    • Buy cheap Non Contact 5/6 Digit Pen Type Multimeter 600V 600mA True RMS Multimeter from wholesalers
    • Buy cheap Non Contact 5/6 Digit Pen Type Multimeter 600V 600mA True RMS Multimeter from wholesalers
    • Buy cheap Non Contact 5/6 Digit Pen Type Multimeter 600V 600mA True RMS Multimeter from wholesalers
    • Buy cheap Non Contact 5/6 Digit Pen Type Multimeter 600V 600mA True RMS Multimeter from wholesalers

    Non Contact 5/6 Digit Pen Type Multimeter 600V 600mA True RMS Multimeter

    Ask Lasest Price
    Brand Name : VICTOR
    Model Number : VICTOR 6012A
    Certification : CE
    Price : 100pcs: USD13.5/pc; 100pcs to 500pcs: USD13/pc; 500pcs to 1000pcs: USD12/pc; Above 3000pcs: USD12.5/pc
    Payment Terms : T/T, Western Union, L/C,Paypal
    Supply Ability : 10000 pc available
    Delivery Time : 5-30 days
    • Product Details
    • Company Profile

    Non Contact 5/6 Digit Pen Type Multimeter 600V 600mA True RMS Multimeter

    VICTOR 6012A Pen-Type Multimeter With 3 5/6 Digit Display True RMS Multimeter Non-Contact 600V AC/DC Voltage 600mA AC/DC Current


    Summary

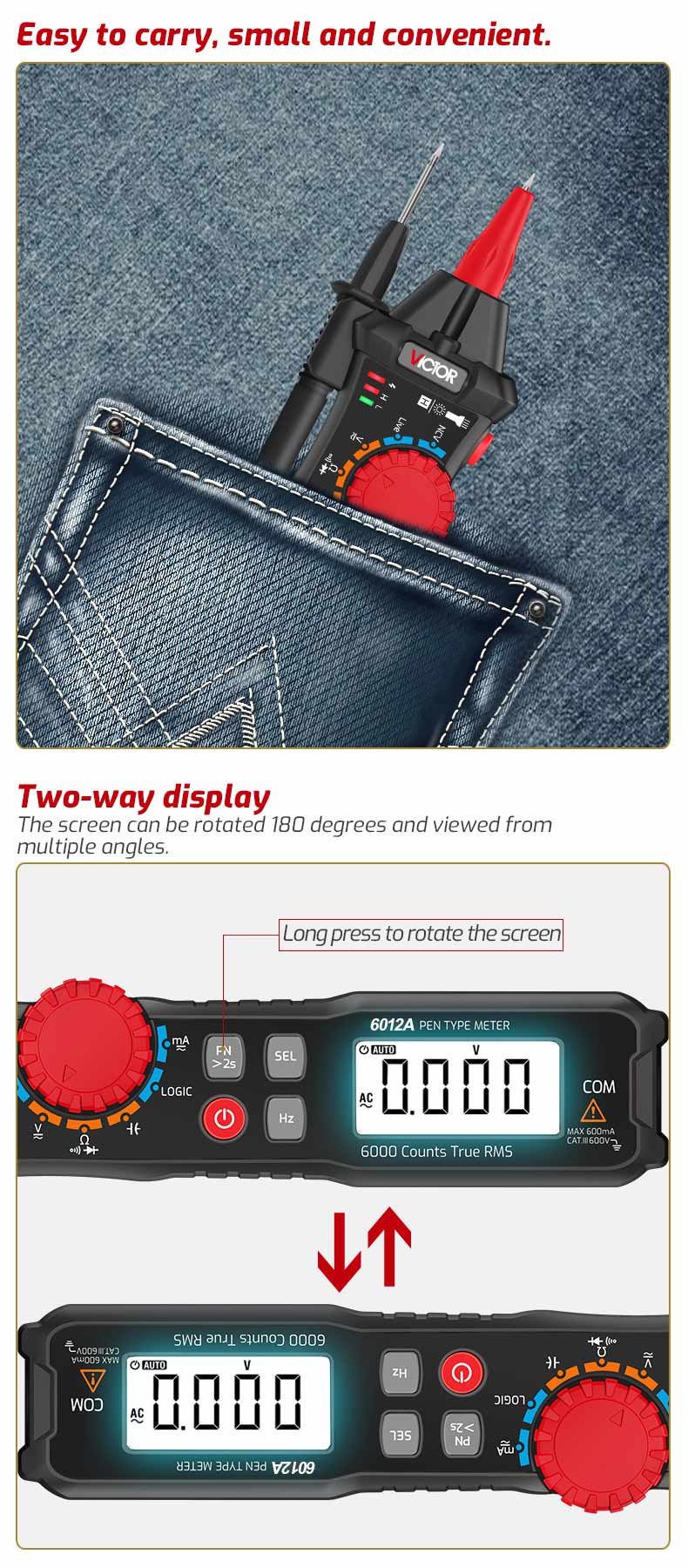

    It is a pen-type multimeter with 35/6 digit display,stable performance, high precision, high reliability, clear reading. 180-degree flip display and overload protection function. Powered by AAA 1.5V battery, the instrument features a LCD display, it is easy to carry and can measure AC/DC voltage (True RMS). AC/DC current, resistance and on-off test, capacitance, diode, zero-line judgment, non-contact voltage detection. It is a multimeter with excellent performance, the ideal tool for laboratories, factories, radio enthusiasts and families.


    Troubleshooting

    If your instrument does not work properly, the following methods can help you quickly solve general problerms, if the failure is still not eliminated, please contact the maintenance center or dealer.


    FailureInspection position and method
    No displayBattery polarity reversal
    Power is not connected
    Replace batteries

    Low battery.symbol display


    Replace batteries
    Current not inputCheck self-recovery fuses
    Large error of resistance display

    Poor connection between test pen and circuit



    Techincal Data

    ModelVICTOR 6012A
    DC VoltageResolutionAccuracy
    600mV±(0.5%±5)
    6V/60V/600V±(0.8%±5)
    AC Voltage6V/60V/600V±(1.0%±3)
    DC Current60mA±(1.0%±2)
    600mA±(2.0%±2)
    AC Current60mA±(1.0%±5)
    600mA±(2.0%±5)
    Logic LevelHighlow

    Logic Level

    1.9V-20V The red light is on “1”'high level, ;

    1V-1.9V Neither red nor green light is on

    0-1V The green light is on "O'"low level;

    1V-1.9V Neither red nor green light is on

    CapacitanceResolutionAccuracy
    6nF±(5.0%±5)
    60nF/600nF/6uF/60uF/600uF±(3.0%±5)
    6mF±(3.5%±10)
    60mF±(3.5%±10)
    Frequency40Hz~6MHz±(1.0%±5)
    Resistance600Ω±(0.8%±5)
    6kΩ/60kΩ/600kΩ/6MΩ±(0.8%±2)
    60MΩ±(3.0%±5)
    Special FunctionVICTOR 6012AVICTOR 6012B
    Diode
    Transistor test**
    Continuity buzzer
    Low battery indication
    Data Hold
    Auto power off
    Backlight
    Flashlight
    Power supply

    2x1.5V AAA

    (Battery not included)

    2x1.5V AAA

    (Battery not included)

    Function protection
    Shockproof protection
    True RMS
    Logic level*
    Zero/Fire Line measurement
    NCV measurement
    AC Frequency response40Hz~6MHz40Hz~9.9MHz
    Operation wayAuto rangeAuto range
    Max. Display59995999

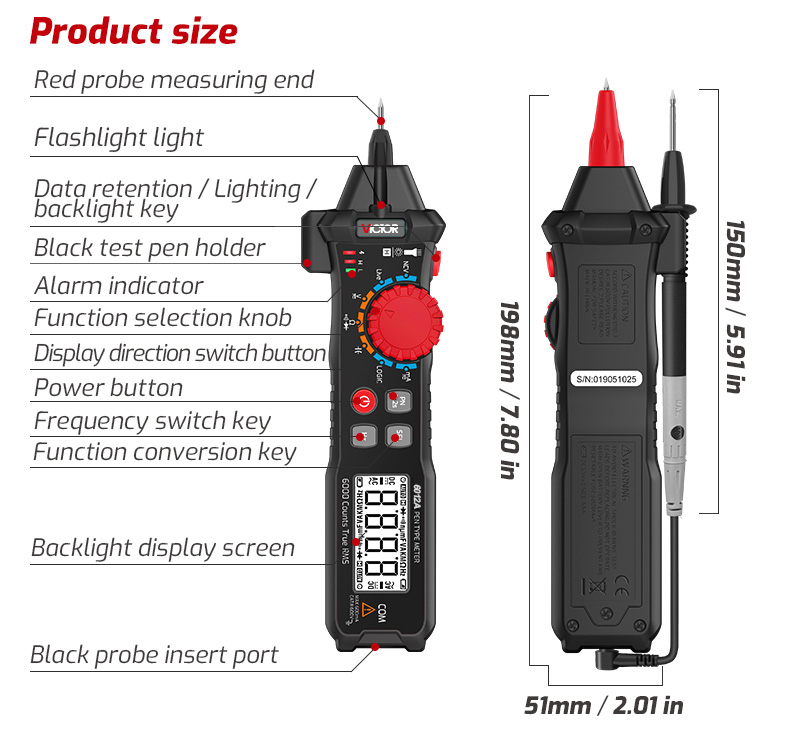

    Size198 X 51x 32mm198 X 51x 32mm
    WeightApprox. 110gApprox. 110g
