    AC 200V Electric Power Tester

    Ask Lasest Price
    Brand Name : VICTOR
    Model Number : VICTOR 850
    Certification : CE
    Price : USD6/pc
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 1000pcs available
    Delivery Time : 5 to 30 days
    • Product Details
    • Company Profile

    AC 200V Electric Power Tester

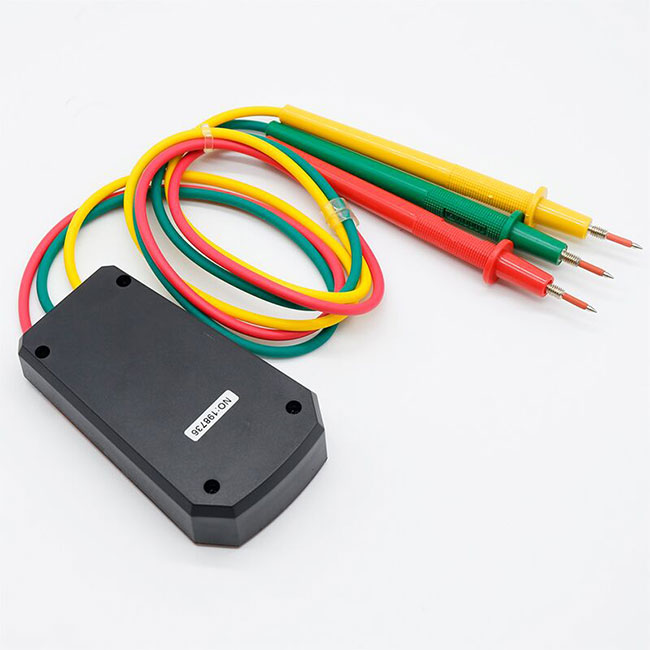

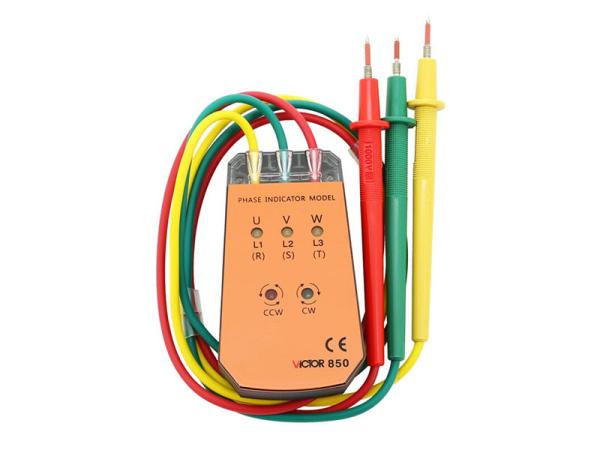

    VICTOR850 Three Phase Indicator cable tracker Rotation Phase Sequence Tester with LED Light Indicator AC 200V- 480V Voltage Meter


    This instrument is designed, manufactured and tested under IEC-348 (Safety requirements for electronic measuring apparatus) safety class II.


    Features:

    1. One Unit with two functions:Check the phase sequence and indicate the phase is open or not.
    2. Safe and reliable:With alligator clips, easily involve the terminals of the control panel, guaranteeing reliability and safety.
    3. Wide voltage test:It can check 200V to 480V AC three-phase voltage,high performance.
    4. Easy to use:With LED light to show if the phase is open or not,supports buzzer indication.
    5. Portable design:Small and light weight,with a carrying bag, convenient to take.
    Description:
    VICTOR 850 three-phase rotation tester is designed to check the phase sequence and show if the phase is open or not. 100% brand new and high quality.

    Specifications:
    Model:850 three-phase rotation tester
    Operation voltage:200V~480V AC three phase
    Limit support voltage:2000V/minute (impulse voltage 4000V)
    Operation frequency range:20Hz~400Hz
    Limit time for continuous use:
    60 minutes maximum at 200V AC
    4 minutes maximum at 480V AC
    Phase Sequence Indicator LED:
    Green for correct phase sequence,intermittent beep
    Red for reverse phase sequence,continuous beep
    Test pen and cable length:80cm
    Size:98 x 58 x 23mm
    Item Weight:135g
    Basic Function / FeatureVICTO 850VICTOR 850A
    Product featureContact way by LED and buzzer
    FunctionCheck the state of open phase and phase sequence
    Voltage range200~480V200~600V
    Measuring frequency range20-400Hz
    Test cable length1m
    Product dimension98*58*23mm
    Weight132g
    BatteriesWithout the use of batteries
