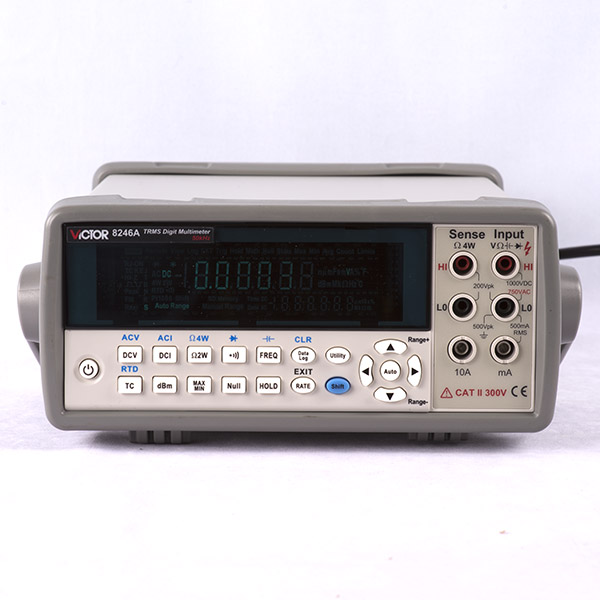

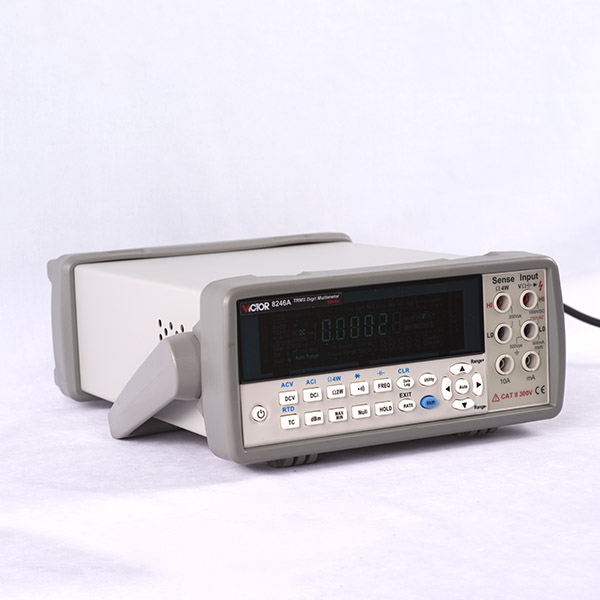

VFD Bench Type Digital Multimeter Auto Range True RMS 55000 RS232

VICTOR 8246A Bench Top Digital Multimeter Auto Range True RMS 55000 RS232 DC/AC Cap. Freq.Temperature Test 20Hz ~ 50KHz Bandwidth

GENERALIZATION

The instrument is a 5-digit portable multimeter powered by 220 V dc with high accuracy and performance. It has all the features of a digital millimeter and measures AC /DC voltage, AC/DC current, resistance, capacitance, dBm, TC, RTD, Diode Test, and Continuity Check, frequency/duty cycle ratio. Besides, it has the following features:

• A VFD Display that allows two properties of an input signal to be displayed at the same time.

• Accurate true rms AC value, bandwidth for type A measurement: 20Hz～50kHz ; bandwidth for type B measurement: 20Hz～1kHz.

• 1uV sensitivity in volts DC.

• 2-wired and 4-wired resistance measurement.

• Measurable capacity higher than 100mF.

• Selectable 1～2400Ω reference impedance dBm measurement.

• Display hold, relative data measurement, maximum value, minimum value and average value measurement

• Selectable manual or auto-range.

• Display rate: 5 readings/ second (slow) and 20 readings/second (slow).

• TC measurement: K graduation degree, inner temperature transmitter, auto-cold compensation, and temperature display in ℃ or℉.

• The built-in memory counter can store up to 50000 (group) independent measuring data.

• Panel calibration function (without open-case adjustment).

• Isolation of common Universal Serial Bus(USB) Port and RS232 serial port.

• Remote operation, surveillance and recording data with a computer. Standard SCPI command is supported, and remote control of the meter can be realized by equipment software.

VICTOR Instruments is a brand  belongs to Xi'an Beicheng Electronics Co.Ltd. (former Victor Instruments ) which was established in 1980s,VICTOR specializes in producing test instruments and especially digital multimeters. Our products include analog and digital multimeters, clamp-meters, calibrators , megohmmeters, thermometers, tachometers, vibrometers, lux meters, function generators, frequency counters, oscilloscopes and other electronic testing and measuring equipment.

We also provide electronic test tools, measurement solutions, environmental products and ODM and OEM services to specific customers.

As before, our factory(Shenzhen VICTOR Hi-Tech Co.,Ltd.) is in Shenzhen city, To expand production demand,we moved to Xi'an city in 2013. And then we registered two new trademarks (YITENSEN and Ruoshui) in year 2017 for promotion of our VICTOR products to overseas market.

With over 30 years , VICTOR instruments has been focused on the full range of electrical testing and analyze instruments ,it is renowned as one of the largest manufacturers and suppliers of innovative, quality handheld test, measurement and inspection tools in the world.

Nowadays, we have agents and representatives in every city of China. Meanwhile, we successfully enter the overseas market in many countries. We strive to provide the best products and most considerate services to all customers.

Our Manufacturing Capability

VICTOR Instruments are designed and manufactured in our Xi'an Beicheng manufacturing center, a modern, automated, high-tech industrial park produces digital multimeter 10,000pcs/day , with pass rate 99.6%. With more than 300 skilled workers and 50 R&D staff ,our manufacturing center covers an area of more than 30,000 square meters , made up of : -8 dust-free workshops; -5 fully automatic production lines -12 sets of state-of-the-art production equipments.
