    DMM Bench Type Digital Multimeter 55000 Counts Benchtop Voltmeter Ohmmeter

    DMM Bench Type Digital Multimeter 55000 Counts Benchtop Voltmeter Ohmmeter

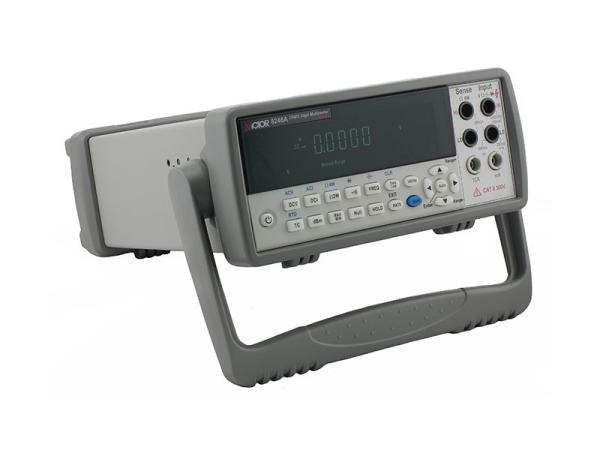

    VICTOR 8246B DMM Digital Bench Top Multimeter True RMS 55000 Counts Tester Auto Range Multimetro Voltmeter Ohmmeter with USB or RS232


    Features

    Auto and Manual Range with Hold Function,55000 Counts

    AC true RMS measurement, measurement bandwidth: 8246B:20Hz ~ 1KHz

    Decibel measurement with reference impedance of 1 to 2400 Ω

    Measure DC and AC Current, Measure DC and AC Voltage

    Measure Four-wire and Two-wire Resistance

    Measure Capacitance 110MF

    Diode, Duty Cycle, Buzzer and Frequency

    Thermocouple measurement:

    K-Type, high-precision temperature sensor, automatic cold junction compensation, temperature display at °C or °F

    Data hold, Auto Power Off (settable), Display the unit

    Max./Min./Avg Value and REL Value

    Measuring display Rate: fast 20 times / sec, slow 5 times / sec

    Dual Over Load Protection, PC Communication Supported

    The multimeter data recording function can perform data recording of large capacity and multiple data parameters, and can read and data the recorded data in the computer. Data records can be configured: record start delay / record interval / number of records.


    Accessories:


    test lead

    1 piece

    Power line

    1 piece

    USB wire

    1 piece

    DB/9 series wire

    1 piece

    CD

    1 disk

    Quick Reference Guide

    1 book


    Project

    VICTOR 8246A

    VICTOR 8246B

    DC voltage

    Range

    50mV/500mV/5V/50V/500V/1000V

    50mV/500mV/5V/50V/500V/1000V

    Basic accuracy

    ±(0.025%+5dgt)

    ±(0.025%+5dgt)

    AC voltage

    Range

    50mV/500mV/5V/50V/500V/750V

    50mV/500mV/5V/50V/500V/750V

    Basic accuracy

    ±(0.7%+30dgt)

    ±(0.7%+30dgt)

    DC current

    Range

    500uA/5000uA/50mA/500mA/5A/10A

    500uA/5000uA/50mA/500mA/5A/10A

    Basic accuracy

    ±(0.15%+10dgt)

    ±(0.15%+10dgt)

    AC current

    Range

    500uA/5000uA/50mA/500mA/5A/10A

    500uA/5000uA/50mA/500mA/5A/10A

    Basic accuracy

    ±(0.8%+30dgt)

    ±(0.8%+30dgt)

    Resistance

    Range

    500Ω/5kΩ/50kΩ/500kΩ /5MΩ/50MΩ

    500Ω/5kΩ/50kΩ/500kΩ /5MΩ/50MΩ

    Basic accuracy

    ±(0.05%+5dgt)

    ±(0.05%+5dgt)

    Capacitance

    Range

    10nF/100nF/1000nF/10uF/100uF
    /1000uF/10mF/100mF

    10nF/100nF/1000nF/10uF/100uF
    /1000uF/10mF/100mF

    Basic accuracy

    ±(5%+5dgt)

    ±(5%+5dgt)

    Frequency

    Range

    10Hz~100kHz

    10Hz~100kHz

    Basic accuracy

    ±(0.02%+4dgt)

    ±(0.02%+4dgt)

    Thermocouple

    Range

    K indexing:-200.0°C~1360.0°C

    K indexing:-200.0°C~1360.0°C

    Basic accuracy

    ±(0.5%+0.5°C)

    ±(0.5%+0.5°C)

    RTD

    Range

    Pt100:-200.0°C~850.0°C

    Pt100:-200.0°C~850.0°C

    Basic accuracy

    ±(0.5%+0.5°C)

    ±(0.5%+0.5°C)

    Display words

    55000

    55000

    The measurement rate

    Quick: 20 times / sec
    Slow: 5 times / sec

    Quick: 20 times / sec
    Slow: 5 times / sec

    Automatic / manual range

    True RMS

    Bandwidth

    50kHz

    1kHz

    The duty ratio

    0.1%~99%

    0.1%~99%

    Diode test

    Continuity beeper

    Four wire resistance measurements

    dBm

    MAX/MIN/AVG

    Relative value measurement

    Data Hold

    The reference junction compensation

    °C/ ° F conversion

    Change rate

    Input impedance

    10MΩ

    10MΩ

    Data recording

    Work in 50000 groups were recorded

    Work in 50000 groups were recorded

    Communication interface

    Configurable isolation USB, isolated RS232 communication

    Online communication

    Support ASCⅡcan realize remote control instrument by the device driver software. The powerful function, friendly man-machine interface, the user can conveniently obtain multiple data parameters of instrument, and the data storage, processing, management, access to data is displayed in the graphical or tabular form.

    Auto power-off

    Display type

    VFD

    VFD

    Power Supply

    220V±10%AC or 110V±10%AC,50Hz or 60Hz

    220V±10%AC or 110V±10%AC,50Hz or 60Hz

    Power

    About 3W

    About 3W

    Safety

    CAT II 300V

    CAT II 300V

    Electromagnetic compatibility

    IEC61326-1,Group1,Class B

    IEC61326-1,Group1,Class B

    Size

    245 × 220 × 82(mmdgt)

    245 × 220 × 82(mmdgt)

    Weight

    About 2kg

    About 2kg

    Standard Quantity Per Carton

    4pcs

    4pcs

    Standard Carton Measurement

    650mm*390mm*370mm

    650mm*390mm*370mm

    Standard Carton Cross Weight

    21Kg

    21Kg
