Open the gift box and take out the instrument, carefully check the
following accessories. If any accessory is missed or damaged,
please contact the manufactory at once.
● Digital Multimeter 1PC
● Operation Manual 1PC
● Test Leads 1SET
● Temperature Probe(K Type Thermocouple) 1PC
● AAA(1.5V)7# Battery 2PCS
● Holster 1PC
General Property
1-1．Display:LCD
1-2．Max Display:1999(3 1/2)counts automatic polarity display and
unit display
1-3．Measuring Method:Dual integral A/D converter
1-4．Sampling Rage:Approx. 3 times / sec.
1-5．Over range Indication:Display“OL”
1-6．Low Battery Indication
1-7．Operation Environment:(0～40)℃,Relative Humidity: ＜80% ；
1-8．Storage Environment:(0～50)℃,Relative Humidity: ＜80% ；
1-9．Power:2pcs 1.5V batteries(“AAA”7# battery)；
1-10．Dimension(size):145×74×36mm
1-11．Weight:Approx. 185g(Including 2pcs 1.5Vbatteries)
1-12．Accessories:1pc operation manual,Holster,1pc gift box,1 set
10A lest leads,1pc K Type Temperature Probe TP01 and 2pcs 1.5
batteries.
Technica Data
| Basic Function | Range | Basic accuracy |
| DC Voltage | 200mV/2V/20V/200V/600V | ±(0.5%+4) |
| AC Voltage | 200mV/2V/20V/200V/600V | ±(0.8%+6) |
| DC Current | 200uA/2000uA/20mA/200mA/10A | ±(1.0%+10) |
| AC Current | 200uA/2000uA/20mA/200mA/10A | ±(1.5%+10) |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+4) |

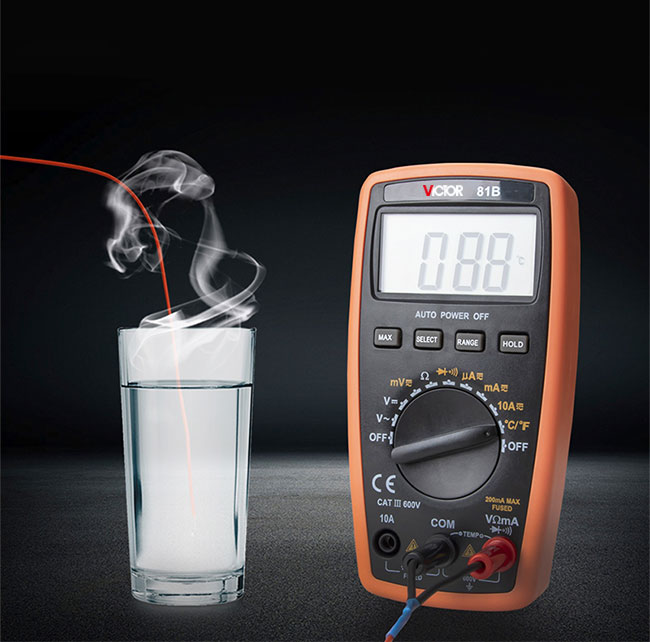

| Celsius | (-20-1000)℃ | ±(1.0%+5) |
| Fahrenheit | (0-1832)℉ | ±(1.0%+5) |
| Special Function | VICTOR 81B |
| Diode test & Continuity buzzer | √ |
| Low battery indication | √ |
| Data hold | √ |

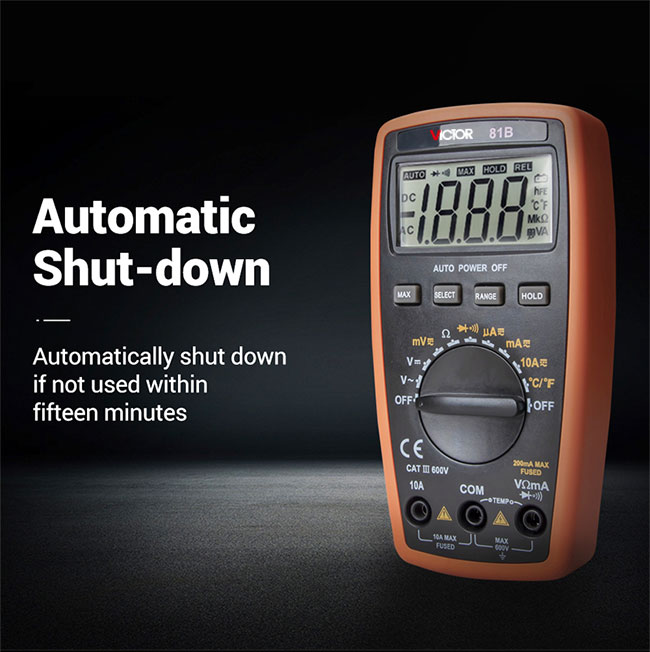

| Auto power off | √ |
| Function protection | √ |
| 10A fuse | √ |
| Shockproof protection | √ |
| self-resume fuse protection for mA | √ |
| Unit symbol display | √ |
| Max. value measurement | √ |
| Input impedance | 10MΩ |
| Sampling rate | 3 times/s |
| AC Frequency response | (50-200)Hz |
| Operation way | Auto/Manual range |
| Max. Display | 3 1/2 (1999) |
| LCD size | 57×33mm |
| Battery | 3V(1.5×2) |
| General Characters |
| Product color | Case: black; Holster color:orange |
| Product Net Weight | Approx: 200g(including battery) |

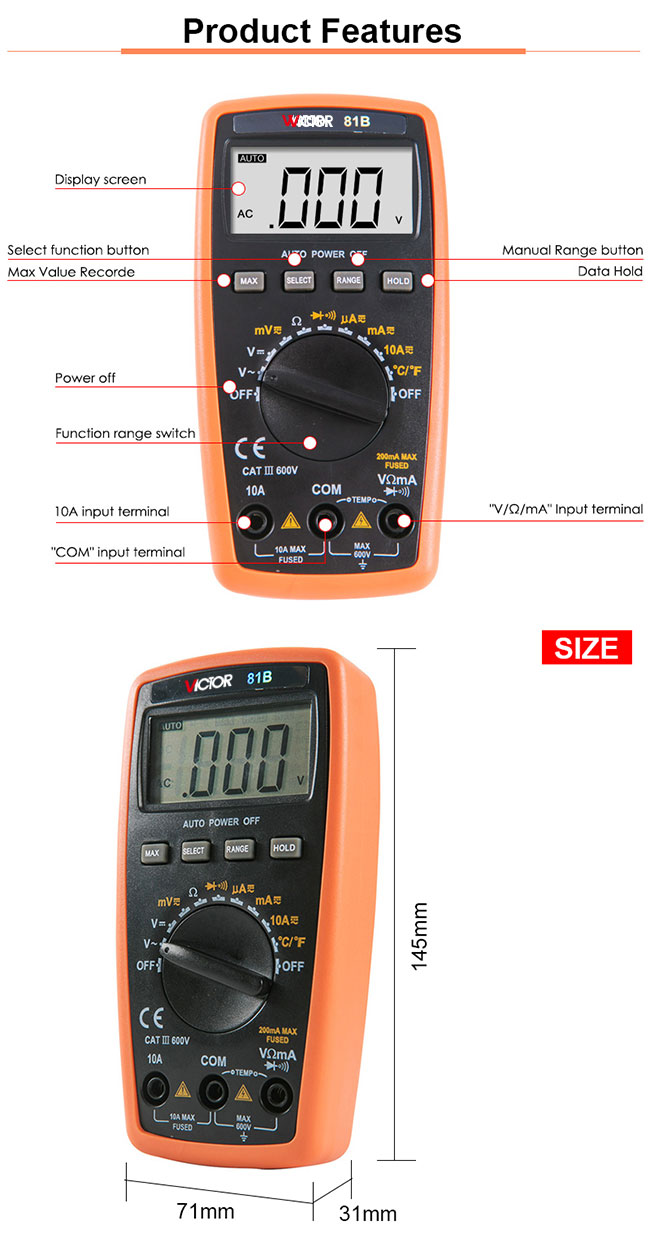

| Product Dimension | 145×80×30mm |
| Standard Accessories | Test leads,battery,instruction manual,TP01 K style temperature
probe, |
| Standard inner packing | Color box |
| Standard Quantity Per Carton | 60Pcs |
| Carton size | 470×325×35mm |
| Standard Gross Weight | Approx:20kg |
