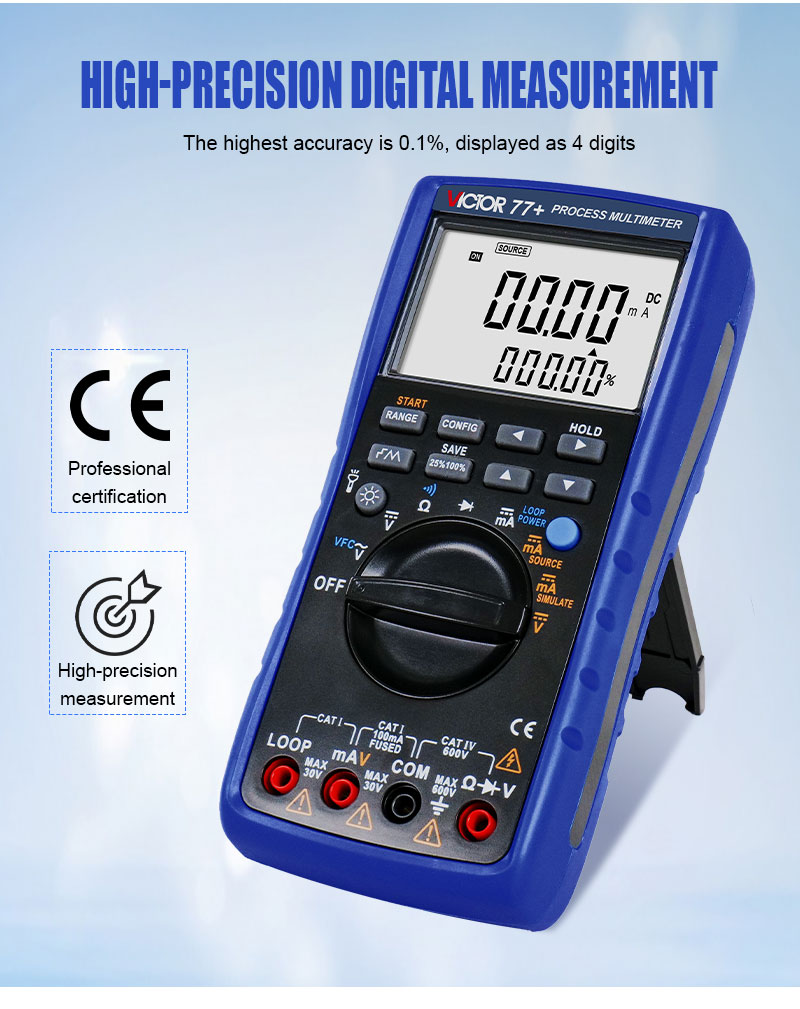

20mA Signal Output 24V Victor 77+ Process Meter 2 In 1 Digital Multimeter

VICTOR 77+ Digital Multimeter 2 In 1 4-20mA Signal Output Multimeter Process Signal Source 0.5% Accuracy 22mA 24V Source CATIV 600V

Generalization

The Meter is a battery-operated process maintain ace field device which combined both digital-parameter function with process-signal source together.

Functioning as follows:

• Measurement function of TC voltage, DC voltage , Ohms, DC, Continuity and Diode; Data reserving function;
• Output function of DC (Constant, Manual-Step and SIMULATE modes)
• Loop-circuit testing function; Powering the loop circuit with 24 Voltage and testing the current; Built-in 250 Ω HART loop resistance
• Safety: complied with IEC 61010-1 safety requirements for measurement, control and electronic instruments for lab use.

Opening the Meter Case

Check the product to see whether it is damaged in the shipment or not. Check the materials to see whether they are the same as shown in the packing list. Keep the packing materials for late delivery.

Standard and chosen accessories supplied are listed as follows. Chosen ones are bought at purchaser’s options.

Standard accessories

• 1 testing wire(with alligator clips)

• 1 user’s manual

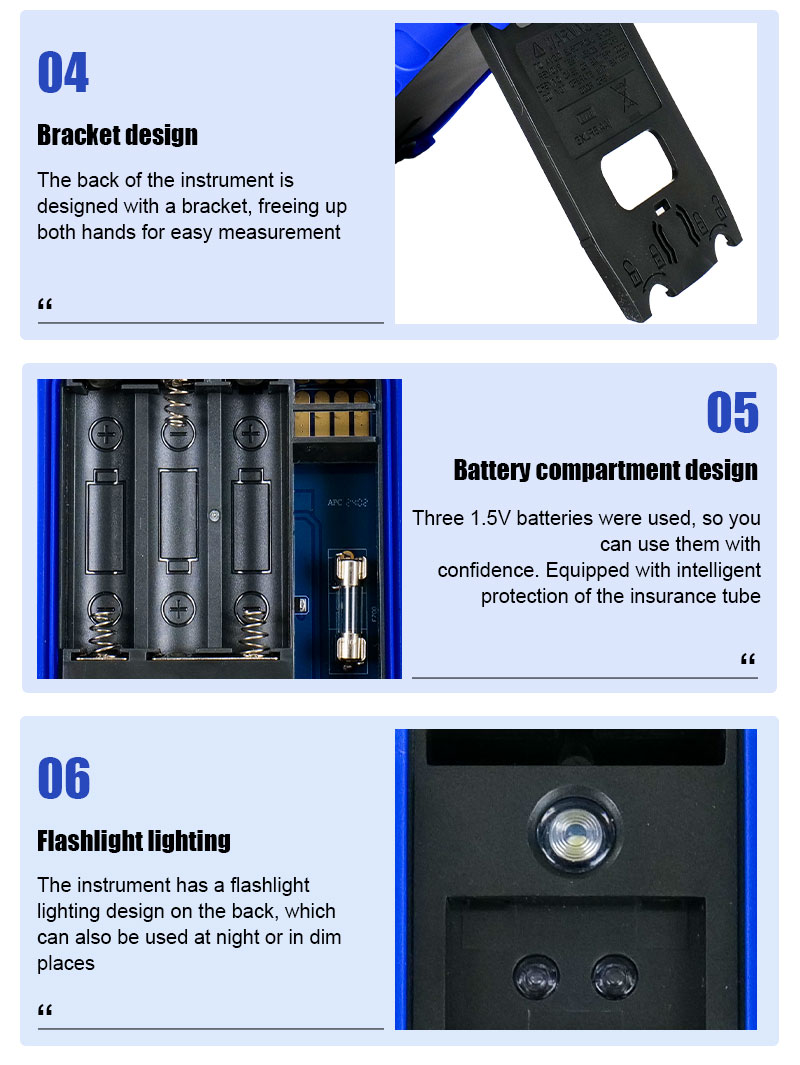

• 2 1.5V (LR6)Alkaline batteries

• 2 63mA/250V Fast Fuses

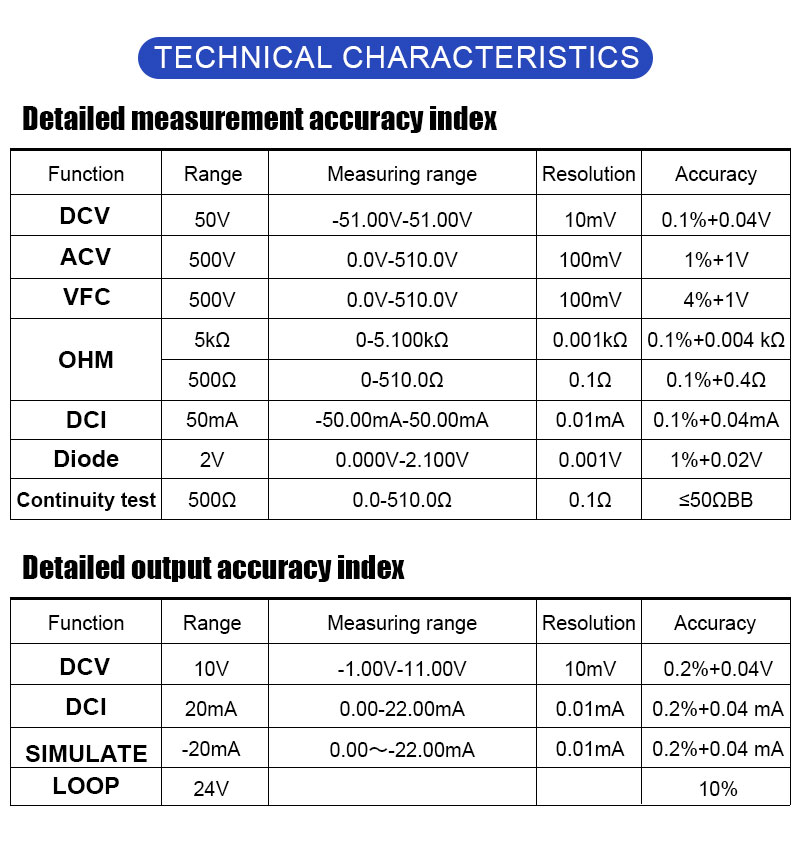

Technical Data

VICTOR Instruments is a brand  belongs to Xi'an Beicheng Electronics Co.Ltd. (former Victor Instruments ) which was established in 1980s,VICTOR specializes in producing test instruments and especially digital multimeters. Our products include analog and digital multimeters, clamp-meters, calibrators , megohmmeters, thermometers, tachometers, vibrometers, lux meters, function generators, frequency counters, oscilloscopes and other electronic testing and measuring equipment.

We also provide electronic test tools, measurement solutions, environmental products and ODM and OEM services to specific customers.

As before, our factory(Shenzhen VICTOR Hi-Tech Co.,Ltd.) is in Shenzhen city, To expand production demand,we moved to Xi'an city in 2013. And then we registered two new trademarks (YITENSEN and Ruoshui) in year 2017 for promotion of our VICTOR products to overseas market.

With over 30 years , VICTOR instruments has been focused on the full range of electrical testing and analyze instruments ,it is renowned as one of the largest manufacturers and suppliers of innovative, quality handheld test, measurement and inspection tools in the world.

Nowadays, we have agents and representatives in every city of China. Meanwhile, we successfully enter the overseas market in many countries. We strive to provide the best products and most considerate services to all customers.
