VICTOR14+ temperature calibrator RTD Measurement Multifunction Process Calibrator

Ask Lasest Price
Brand Name :	VICTOR
Model Number :	VICTOR 14+
Certification :	CE
Price :	USD350/pc
Payment Terms :	T/T, Western Union, L/C, Paypal
Supply Ability :	1000pcs available
Delivery Time :	5 to 30 days

Add to Cart

Product Details
Company Profile

VICTOR14+ temperature calibrator RTD Measurement Multifunction Process Calibrator

VICTOR 14+ Temperature Calibrator with Measure and Source function 2-wire,3-wire,4-wire connection or ohm and RTD measurement

Temperature Calibrator

Introduction

This temperature calibrator (the calibrator in the following) is a handheld, battery-operated instrument that measures and sources electrical and physical parameters.

Features:

Measure: DC-voltage, ohm, Tc, RTD, continuity;

Source: DC-voltage, ohm, Tc, RTD;

Others features:

2-wire,3-wire,4-wire connection method for ohm and RTD measurement.

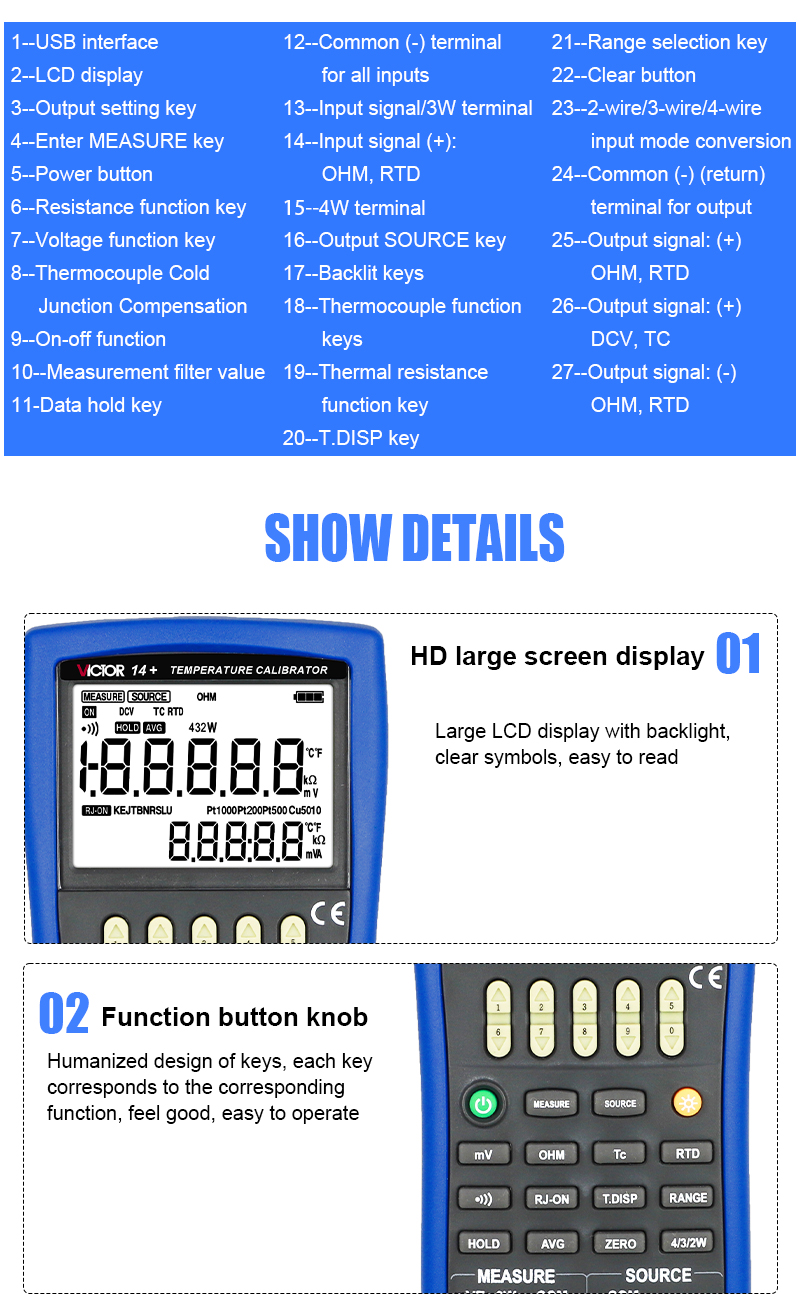

Big LCD can display the TC/RTD measurement value and voltage/resistance corresponding simultaneously.
TC measurement/source terminals and built-in lead connector of same temperature (RJ compensation with auto-reference joint point)
Room temperature monitoring under any operation
Measurement wave-filter function
Measurement manual-holding function

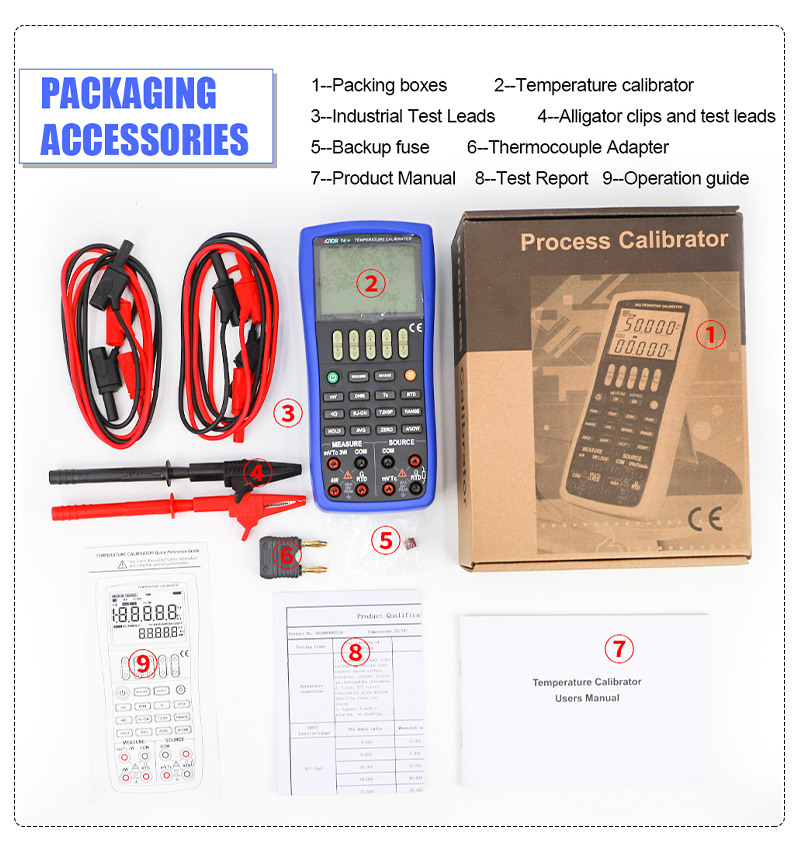

Standard Accessories

Make sure that the package contains all the accessories listed below. And if you find they are damaged or any of them is missing, please contact the vendor from which you purchased the product as soon as possible. Refer to the replacing part list in 15.3 in the Manual if you want to order the replacing parts.

One set of Industrial testing Lead (CL727220)

A set of Testing Lead (Tp727110)

A set of Alligator clip (CC807130)
A quick reference guide

A User's Manual

One Fuse 50mA/250V

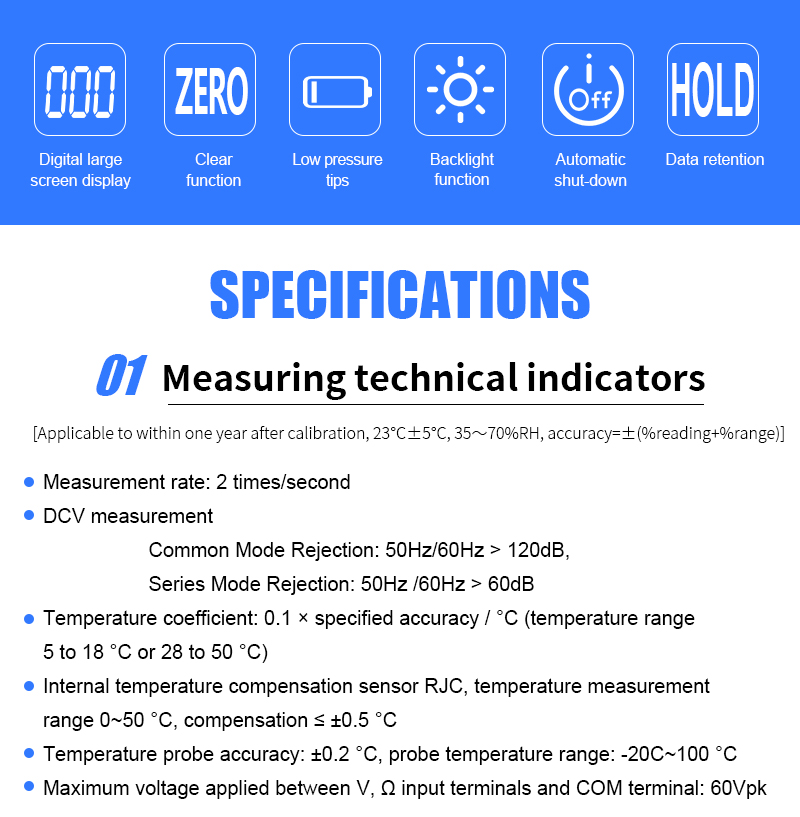

Techincal Data

Project		The peference model Performance parameters	VICTOR 11+	VICTOR 14+	VICTOR 15+
Source	DC millivolt	Range	-10 ～ 1100mV	-10.000～100.000mV	-10 ～ 1100mV
		Accuracy= ±(% of the set value+% of range)	0.02%+0.01%	0.02%+0.01%	0.02%+0.01%
		Resolution	1uV	1uV	0.01mV
	DC voltage	Range	-1 ～ 11V	-0.1 ～ 1V	-1 ～ 11V
		Accuracy= ±(% of the set value+% of range)	0.02%+0.01%	0.02%+0.01%	0.02%+0.01%
		Resolution	0.1mV	10uV	0.1mV
	DC current	Range	0 ～ 22mA	N/A	0 ～ 22mA
		Accuracy= ±(% of the set value+% of range)	0.02%+0.02%		0.02%+0.02%
		Resolution	1uA		1uA
	Sink current	Range	0 ～ 22mA	N/A	0 ～ 22mA
		Accuracy ±(% of the set value+% of range)	0.02%+0.02%		0.02%+0.02%
		Resolution	1uA		1uA
		External power supply	5 ～ 28V		5 ～ 28V
	Resistance	Range	0 ～ 40KΩ	0 ～ 4KΩ	N/A
		Accuracy= ±(% of the set value+% of range)	0.02%+0.02%	0.02%+0.02%
		Resolution	0.01Ω/0.1Ω/1Ω	0.01Ω/0.1Ω
	Frequency	Range	1Hz ～100KHz	N/A	1Hz ～10KHz
		Accuracy	±2words		±2words
		Resolution	0.01Hz/1Hz/0.1KHz/2KHz		0.01Hz/1Hz/0.1KHz/2KHz
	Pulse	Frequency	1Hz ～10KHz	N/A	1Hz ～10KHz
		Range	1 ～100000cyc		1 ～100000cyc
		Accuracy	±2words		±2words
		Resolution	1cyc		1cyc
	Switch	Range	1Hz ～100KHz	N/A	N/A
		Accuracy	±2words
		Resolution	0.01Hz/1Hz/0.1KHz/2KHz
	Thermocouple	Range	10types(R/S/K/E/J/T/B/N/L/U)	10types(R/S/K/E/J/T/B/N/L/U)	N/A
		Accuracy	0.4℃	0.4℃
		Resolution	0.1℃/1℃	0.1℃/1℃
	RTD	Range	6types(Pt100/Pt200/Pt500/ Pt1000/Cu10/Cu50)	6types(Pt100/Pt200/Pt500/ Pt1000/Cu10/Cu50)	N/A
		Accuracy	0.2℃	0.2℃
		Resolution	0.1℃	0.1℃
Measure	DC millivolt	Range	N/A	-5 ～ 550mV	-20 ～ 220mV
		Accuracy= ±( % of Reading+ % of Range)		0.02%+0.01%	0.02%+0.02%
		Resolution		1uV/10uV	0.01mV
	DC voltage	Range	N/A	N/A	-5 ～ 55V
		Accuracy= ±( % of Reading+ % of Range)			0.02%+0.01%
		Resolution			0.1mV/1mV
	DC current	Range	N/A	N/A	-4 ～ 55mA
		Accuracy= ±( % of Reading+ % of Range)			0.02%+0.01%
		Resolution			1uA
	Resistance	Range	N/A	0 ～ 5.5KΩ	N/A
		Accuracy= ±( % of Reading+ % of Range)		0.05%+0.02%
		Resolution		0.01Ω/0.1Ω
	Frequency	Range	N/A	N/A	3 ～50KHz
		Accuracy			±2words
		Resolution			0.01Hz/0.1Hz/1Hz
	Switch	Range	N/A	N/A	CLOSE/OPEN
	Switch	Threshold	N/A	N/A	200 ～300Ω
	Pressure	Range	N/A	N/A	Depends on the pressure module
		Accuracy= ±( % of Reading+ % of Range)			Depends on the pressure module
		Resolution			5 digit display
	Loop power supply	Range	N/A	N/A	24V
		Accuracy			±10%
		The maximum current			22mA
	Thermocouple	Range	N/A	10types(R/S/K/E/J/T/B/N/L/U)	N/A
		Accuracy		0.7℃
		Resolution		0.1℃/1℃
	RTD	Range	N/A	6types(Pt100/Pt200/Pt500/ Pt1000/Cu10/Cu50)	N/A
		Accuracy		0.5℃
		Resolution		0.1℃
	Continuity beeper	Range	N/A	0 ～500Ω
		Accuracy		≤50Ω Sound	≤250Ω Sound
		Resolution		0.01Ω
Other functions	Backlight		√	√	√
	Auto Power-off		√	√	√
	Charging function		√	√	√
	Room temperature display		√	√	√
	Battery detection		√	√	√
	Communication function		RS232 serial communication, can realize remote control instrument by the device driver software
	The mathematical treatment		Data hold,zero,average	Data hold,zero,average	Data hold,zero,average
Characteristic
Safety			EN61010-1:2001	EN61010-1:2001	EN61010-1:2001
Insulation			DC500V /50MΩ	DC500V /50MΩ	DC500V /50MΩ
EMC			EN61326-1:2006	EN61326-1:2006	EN61326-1:2006
Authentication			CE	CE	CE
Display			Double display on the LCD screen	Double display on the LCD screen	Double display on the LCD screen
Power supply			4×1.5V AAA alkaline battery	4×1.5V AAA Alkaline battery	4×1.5V AAA Alkaline battery
Size			205 × 95 × 42 mm	205 × 95 × 42 mm	205 × 95 × 42 mm
Weight			About 500g	About 500g	About 500g
Standard Quantity Per Carton			10pcs	10pcs	10pcs
Standard Carton Measurement			395mm385mm260mm	395mm385mm260mm	395mm385mm260mm
Standard Carton Cross Weight			10.4Kg	10.3Kg	11.5Kg
