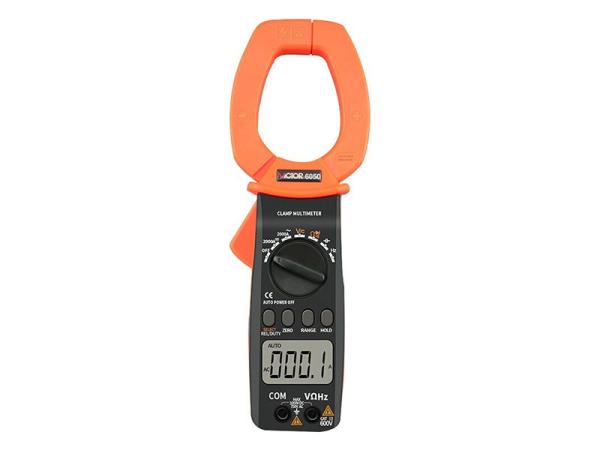

VICTOR 6050 Digital Amper Clamp Meter Auto Range 1000A AC/DC larger Current Voltage frequency capacitance Diode tester Clamp Meters

1. General

It is a 3 3/4-bit digital clamp meter of automatic range conversion and a high-reliability digital clamp multimeter with stable performance and driven by battery. It adopts 16mm font height LCD display of clear readings. With the functions of data retention and automatic power-off, it is more convenient to use.

This meter can be used to measure such parameters as DCV, ACV, DCA, ACA, resistance, capacity, frequency, diode, continuity, etc. Centered on the dual slope A/D conversion of large-scale integrated circuit, the whole set has the function of automatic range conversion and thus is a meter with excellent performance and a desirable tool for labs, factories, radio fans and homes.

2. General Features

1-1. Display mode: LCD display;

1-2. Max. display: 3999(3 3/4)bit auto polar display or unit display;

1-3. Measurement mode: Dual slope A/D conversion;

1-4. Conversion rate: 3 times/s;

1-5. Over-range display: “OL” displayed in the highest

1-6. Low battery display

1-7. Auto power-off function;

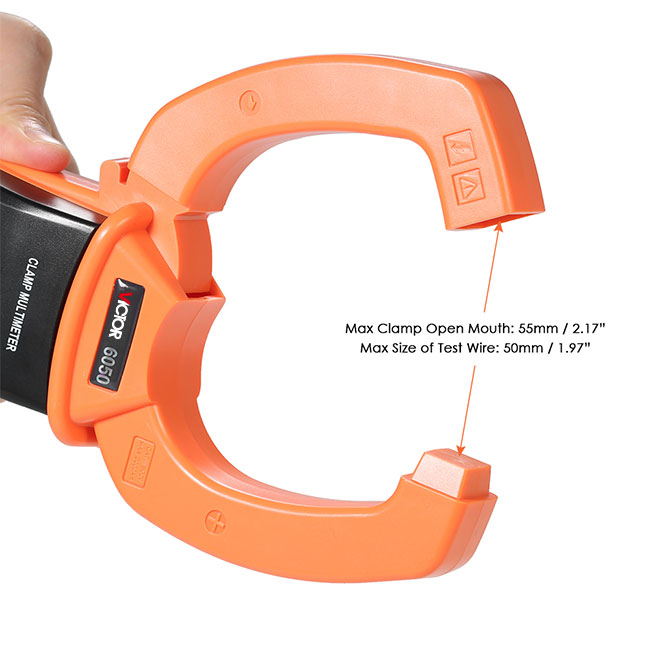

1-8. Max. head opening size: dia. 55mm;

1-9. Max. size of predicted current lead: dia. 50mm;

1-10. Effect of electromagnetic field: If used for devices nearby electromagnetic field, unstable or incorrect readings may be displayed;

1-11. Error caused by test position: When measuring current, please place the source to be tested in the center of the clamp head; otherwise, certain additional error will occur;

1-12. Operating environment: (0~40)℃, RH＜80%;

1-13. Storage environment: -10~50℃, RH＜80%;

1-14. Power supply: 9V battery NEDA1604/6F22;

1-15. Volume (dimensions): 275mm×96mm×50mm (L×W×H) ;

1-16. Approx. 565g (battery included).

3. Technical

Accuracy: ± (a% of reading + word count) with accuracy ensured. Ambient temperature: (23±5)℃, RH＜75%; calibration warranty period as one year from ex-works date.
