VICTOR 6310A DC Low Resistance Tester 30KOHM resistance range 500 group data storage

    Buy cheap VICTOR 6310A DC Low Resistance Tester 30KOHM resistance range 500 group data storage from wholesalers

    Buy cheap VICTOR 6310A DC Low Resistance Tester 30KOHM resistance range 500 group data storage from wholesalers
    • Buy cheap VICTOR 6310A DC Low Resistance Tester 30KOHM resistance range 500 group data storage from wholesalers
    • Buy cheap VICTOR 6310A DC Low Resistance Tester 30KOHM resistance range 500 group data storage from wholesalers
    • Buy cheap VICTOR 6310A DC Low Resistance Tester 30KOHM resistance range 500 group data storage from wholesalers
    • Buy cheap VICTOR 6310A DC Low Resistance Tester 30KOHM resistance range 500 group data storage from wholesalers
    • Buy cheap VICTOR 6310A DC Low Resistance Tester 30KOHM resistance range 500 group data storage from wholesalers

    VICTOR 6310A DC Low Resistance Tester 30KOHM resistance range 500 group data storage

    Ask Lasest Price
    Brand Name : VICTOR
    Model Number : 6310A
    Certification : CE
    Price : 5pcs to 100pcs USD106.1/pc; 100pcs to 500pcs USD99/pc; above 500pcs USD94.6/pc
    Payment Terms : T/T, L/C
    Supply Ability : 20000pcs available
    Delivery Time : 10 to 45 days
    • Product Details
    • Company Profile

    VICTOR 6310A DC Low Resistance Tester 30KOHM resistance range 500 group data storage

    6310 Digital DC low resistance meter, also known as micro-ohmmeter, ohmmeter, equipotential tester, using the microprocessor technology, four-wire test, safety, precision and reliability.Mainly used to measure the wire resistance of cables, the contact resistance of switches, connectors, relays, the resistance of coils, motors, transformer windings, and equipment enclosures, lightning protection belts, ground beams, structures, cabinets, steel bars, water pipes, windows, guardrails, and heat dissipation


    Connection resistance test between metal components of objects such as devices, assembly lines, etc.
    It is widely used in telecommunications, electric power, meteorology, computer rooms, oil fields, power distribution lines, tower transmission lines, gas stations, factory grounding grids, lightning rods, etc.

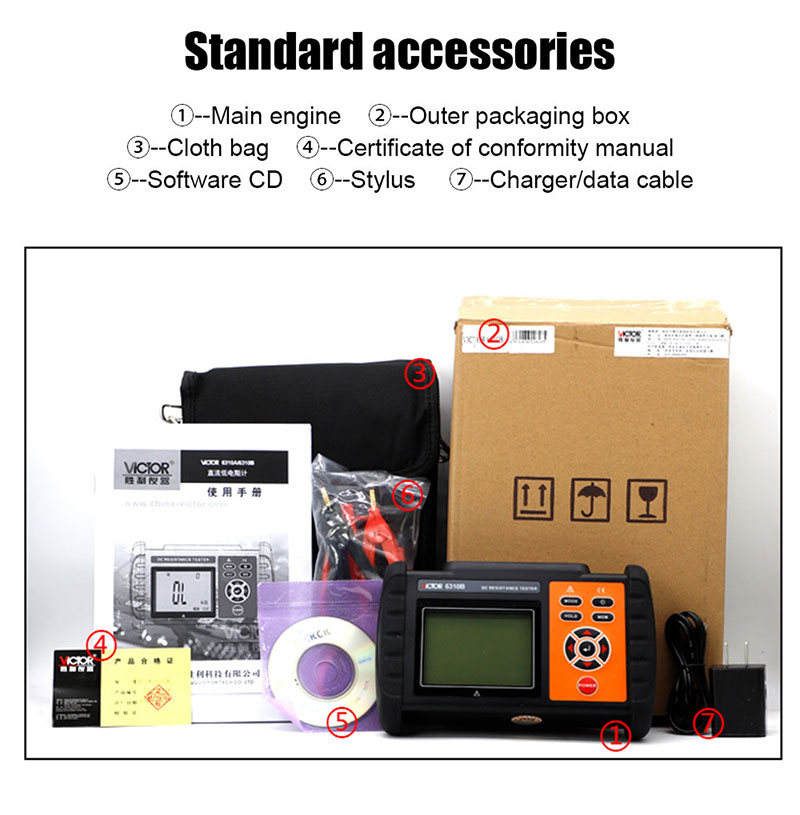

    6310 digital DC low resistance meter is composed of host, monitoring software, test line, communication line, etc. The
    large-screen LCD display of the main unit is clear at a glance, and the port overload prevention function prevents the instrument from being burned out by misoperation.Store 500 sets of data, resistance measurement range: 0.001mΩ~ 300.0KΩ.
    The upper computer software has functions such as historical data reading, consulting, saving, and reporting.
    ModelRangeAccuracyResolutionMaximum test current
    6310B0.001mΩ~10.000mΩWithin 18℃~28℃, Below 70%rh:
    ±0.1%FS±20dgt
    0.001mΩ1.2A
    10.01mΩ~100.00mΩ0.01mΩ1.2A
    100.1mΩ~1000.0mΩ0.1Ω1.2A
    1.001Ω~10.000Ω0.001Ω1.2A
    10.01Ω~100.00Ω0.01Ω0.5A
    100.1Ω~1000.0Ω0.1Ω0.05A
    1.001KΩ~10.000KΩ0.001KΩ5mA
    10.01KΩ~100.00KΩ0.01KΩ0.5mA
    100.1KΩ~300.0KΩ0.1KΩ0.05mA
    6310A0.01mΩ~100.00mΩ
    Within 18℃~28℃, Below 70%rh:
    ±0.1%FS±20dgt
    0.01mΩ1.2A
    100.1mΩ~1000.0mΩ0.0001Ω1.2A
    1.001Ω~10.000Ω0.001Ω1.2A
    10.01Ω~100.00Ω0.01Ω0.5A
    100.1Ω~1000.0Ω0.0001KΩ0.05A
    1.001KΩ~10.000KΩ0.001KΩ5mA
    10.01KΩ~30.00KΩ0.01KΩ0.5mA
