    VICTOR 60D+ displays in 2000 digits intelligent micro-insulation tester Short circuit measurement current more than 1 mA

    Ask Lasest Price
    Brand Name : VICTOR
    Model Number : VC60D+
    Certification : CE
    Payment Terms : T/T PAYPAL
    Supply Ability : 10000PCS
    Delivery Time : 5-45 DAYS
    Price : 5pcs to 100pcs: USD40/pc; 100pcs to 500pcs: USD38/pc; above 500pcs : USD36/pc;
    • Product Details
    • Company Profile

    VICTOR 60D+ displays in 2000 digits intelligent micro-insulation tester Short circuit measurement current more than 1 mA

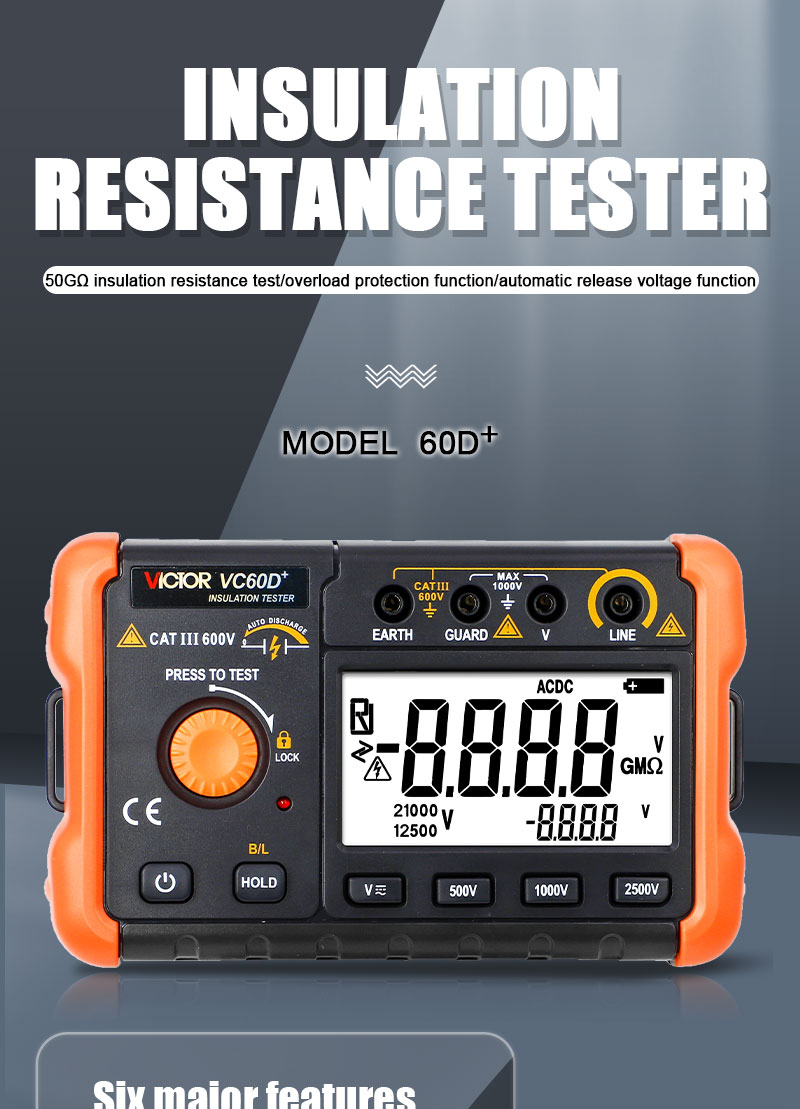

    60D+ 500V/1000V/2500V Digits intelligent micro-insulation tester

    This- Instrument- is-an-intelligent- micro-insulation tester, which can measure parameters such as insulation resistance and voltage, with features of stable performance and user-friendly operation.

    The-design conforms to-the following safety requirements:
    DLT·845.1·General specifications for measuring resistance equipment Part 1:electronic insulation resistance meters.
    JJG-1005 Verification-Regulationr of Electronic Insulation Resistance Meters.
    Insulation measurement voltage in large ranges:250V, 500V,1000V.
    Insulation resistance measurement as high as 5GΩ.

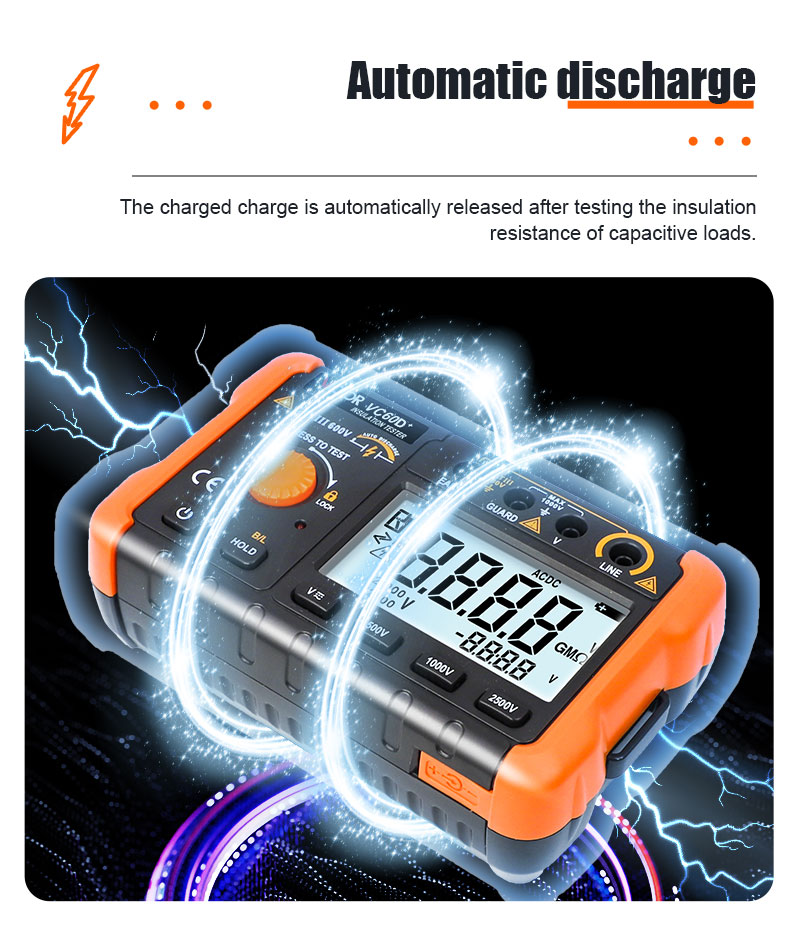

    Automatic voltage release function.

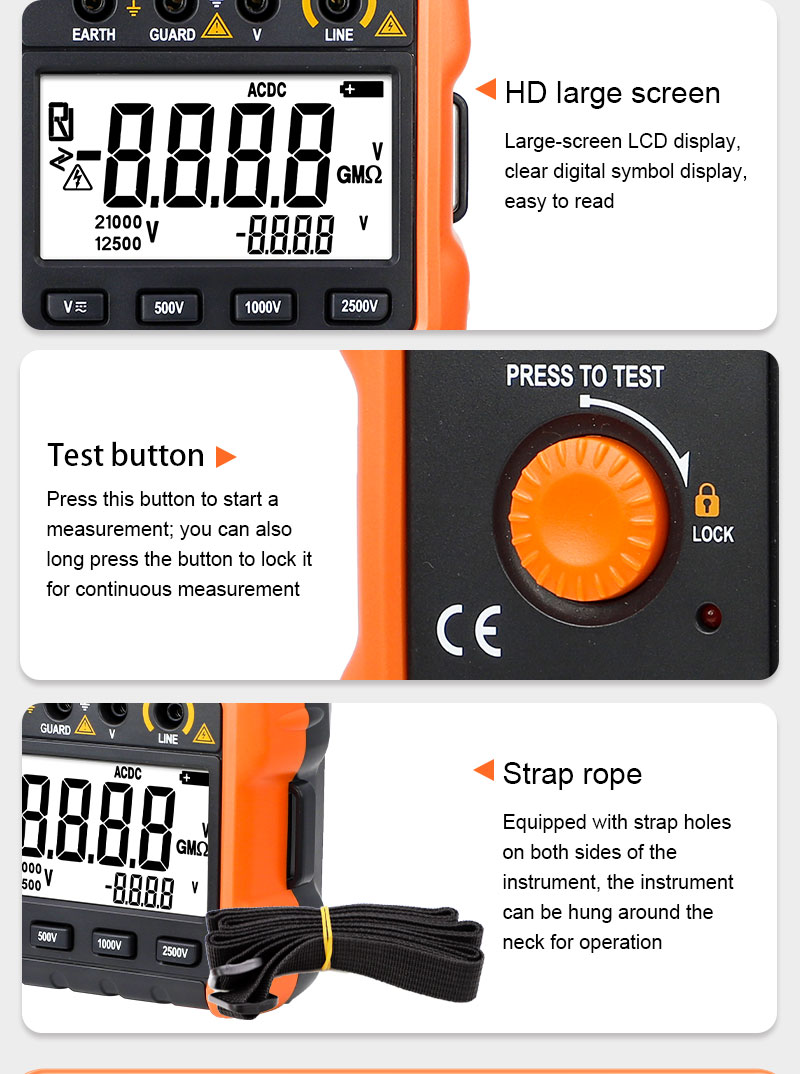

    White backlight functionr to view the test results in dimly areas.
    The actual output voltage value and the measured insulation resistance value are displayed at the same time.
    The test switch has a locking function.
    Voltage test and alarm function ofthe tested object..

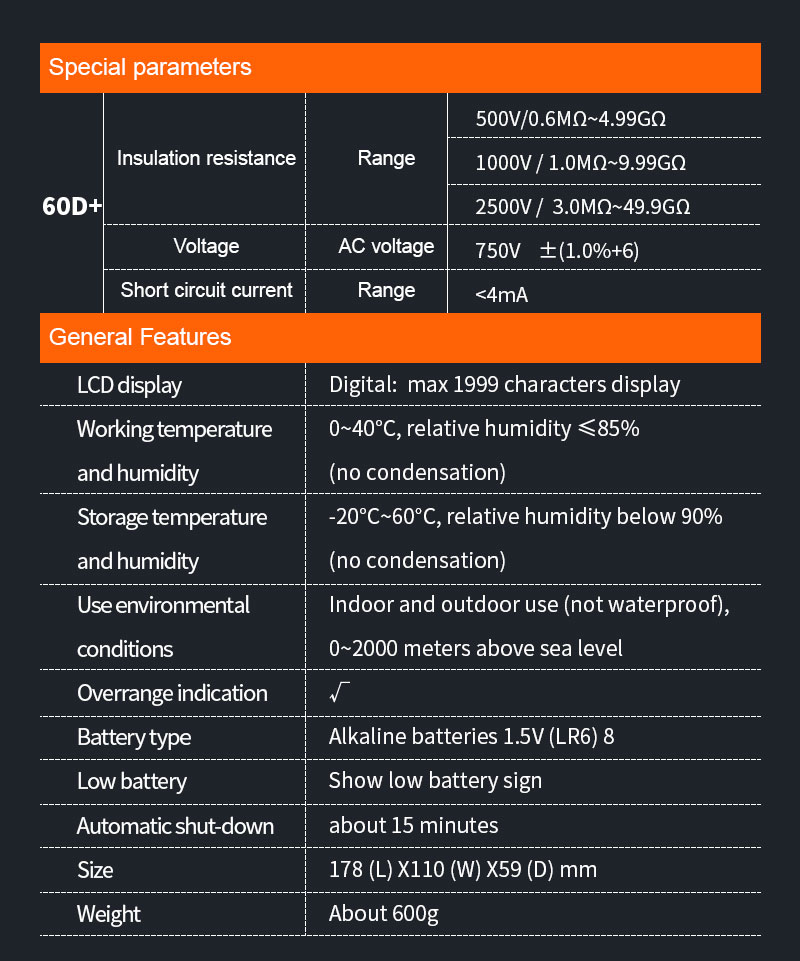

    Specification

    Overload Protection

    Insulation resistance function: AC1200V/10 seconds;

    voltage function: AC750V/DC1000V/10 seconds

    Legal ConformityIEC61010-1(CAT Ⅲ 600V,POLUTION degreeⅡ)
    IEC61557-1,2(electronic safety requirements for low voltage distribution system below AC 750V and DC 1000V
    Electromagnetic Compatibilityconforms to IEC61326-1,Group 1,Class B
    Surge Protection6kV (as per IEC61010.1-2001)

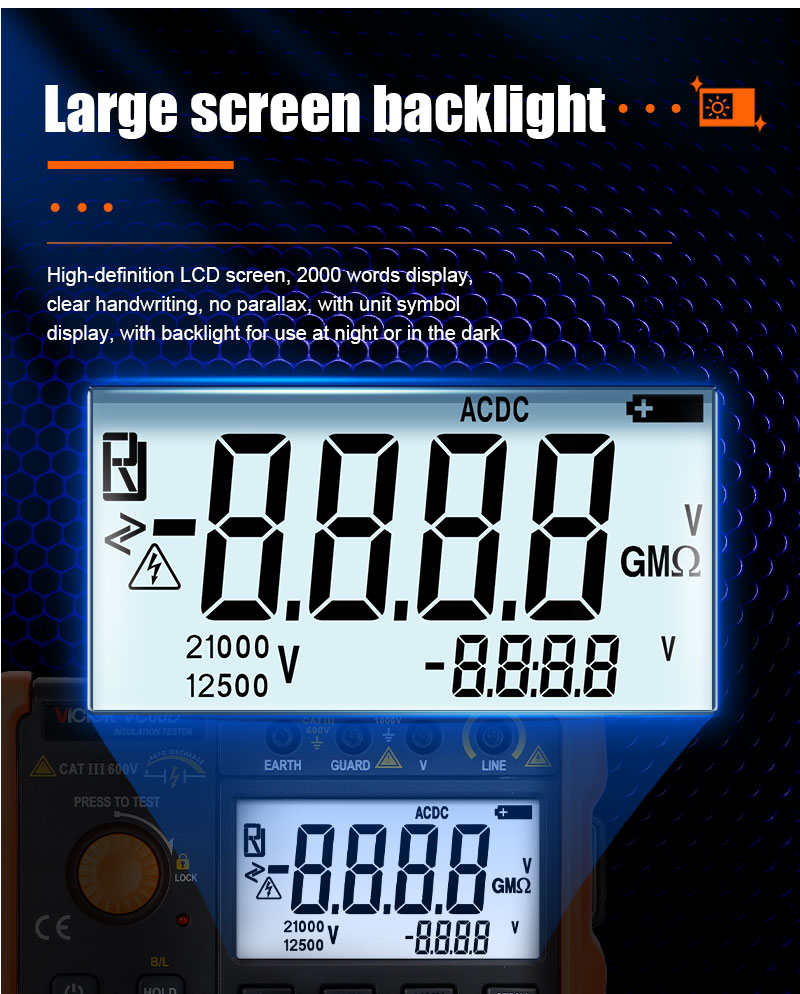

    Display Screendigit: displays in 2000 digits; white backlight
    Operation Temperature and Moisture Range0~40 ºC, relative moisture≤85%(no condensation)
    Storage Temperature and Moisture Range-20ºC~60ºC,relative moisture≤90%( no condensation)
    Accuracy Required Temperature and Moisture Range23±5ºC,relative moisture≤75%( no condensation)
    Ambient Condition for OperationIndoor, outdoor operation(no waterproof),at an altitude of 0~2,000 meter
    Indicator for Over-rangeVoltage: OL
    Insulation resistance: > 1999G / >1.99G / >4.99G
    Battery Type8* 1.5V Alkaline (LR6) batteries
    Low Batterydisplays battery symbol
    Automatic Power-offThe default value is 15 minutes if no operation
    Closed – case Calibrationno internal adjustments needed
    Size178(L)×110(W)×59(D)mm
    Weightabout 630g
    Calibration PeriodOne year
